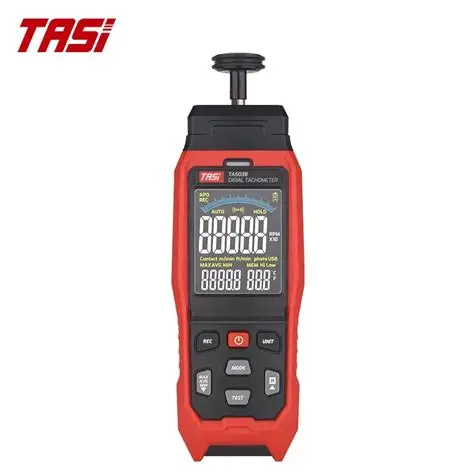

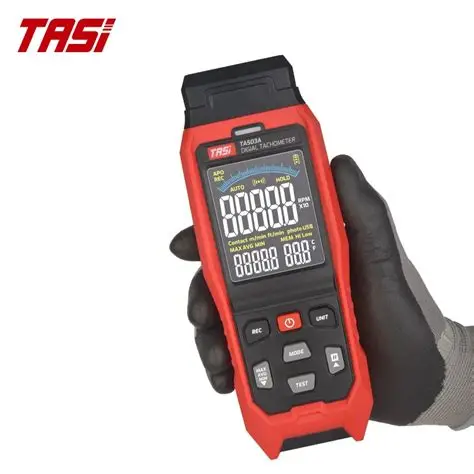

Tasi TA503C Tachometer Data Logger

TASI TA503C adalah takometer digital 2-in-1 yang menawarkan kemampuan pengukuran kontak dan non-kontak (laser), dengan pencatatan data dan konektivitas PC melalui USB.

Tachometer dengan 2 mode pakai

1. Contact via Laser
2. Non Contact via Sentuh
Dengan fungsi data logger. Bisa simpan olah data ke PC via USB

Specifications

• Measurement Type: Dual-mode (Contact and Non-contact via laser).
• Non-Contact (Laser) RPM Range: 3 to 100,000 RPM.
• Contact RPM Range: 3 to 19,999 RPM.
• Surface Speed Range: 0 to 1999.9 m/min; 0 to 9999.9 ft/min.
• Length/Distance Function: 0 to 99999 m.
• Accuracy (Non-Contact): ±(0.05% FS + 1 RPM).
• Accuracy (Contact): ±(0.1% FS + 1 RPM).
• Effective Measuring Distance (Non-Contact): 50mm to 500mm.
• Sampling Time: 0.8 seconds (above 60 RPM).

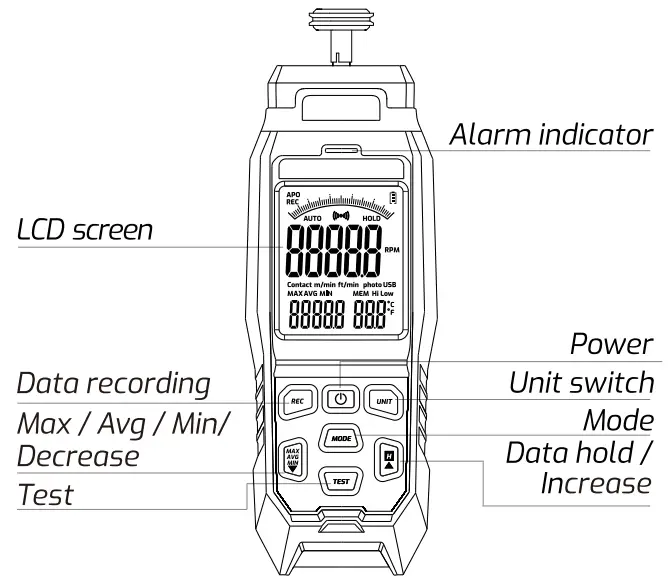

• Features and Connectivity
• Data Logging: Stores up to 2000 groups of data.
• PC Connection: USB interface for data export to Excel and curve charts using dedicated software.
• Display: Large color LCD with backlit display.
• Functions: Min, Max, Average (Ave) and Data hold functions.
• Alarm: High and low alarm limit settings (sound and LED alerts).
• Power: 3 x 1.5V AA batteries or 5V via a micro USB interface.
• Auto Power Off: Yes, after 15 minutes of inactivity.

Environmental Conditions

• Working Environment: -10°C to 50°C (14°F to 122°F), max 80% RH.
• Storage Environment: -10°C to 50°C, max 70% RH (battery removed).
• IP Rating: IP65 protection grade (specified by some vendors, this might refer to the general design, but confirm with your vendor).

Package includes:

Soft case
USB cable
accesories
Reflective tape
Manual
