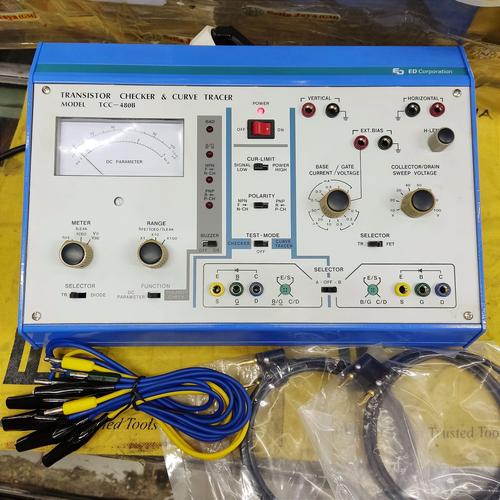

TCC-480B Transistor Checker & Curve Tracer ED Laboratory

Curve tracer adalah peralatan untuk menguji karakteristik I–V (arus-tegangan) komponen semikonduktor seperti transistor (BJT, FET), dioda, dan lainnya. Alat ini mengeluarkan sinyal sweep tegangan serta variasi arus bias dan menampilkan kurva keluaran yang membantu dalam analisis gain, voltase breakdown, dan kondisi komponen

Spesifikasi TCC-480B

ED Laboratory model TCC-480B Transistor Checker amp; Curve Tracer TCC-480B Made in Korea Produksi +- tahun 2000

1-2-1 Curve Tracer

Colector / Drain Sweep Frequency : 100 Hz or 120 Hz Voltage : 8 step : 10, 20, 30, 40, 50, 60 70, 80, 100V Accuracy : +- 10% Current : 100 mA, Max Current limiter : 1,000 Ohm for low level transistor, 100 Ohm for power transistor Step Generator No of step : 7 Current / step : 10, 20, 50 uA : 0.1 , 0.2 , 0.5, 1, 2mA: Accuracuy : +- 10% Voltage / step: 0.1 , 0.2 , 0.5V : Accuracy : +-5% External bias : One curve display 1-2-2 Transistor Checker * Polarity check Measuremet voltage : approx +-2V, duty ratio about 10% Measurement Current Low drive : max 4.5 mA , average : 0.45 mA Hogh drive : max 60 mA, average : 6 mA Measurement speed: 1-10 times / second DC Parameter measurement : Measurement range : DD, V BE : 0-3 V DC, 1range , Accuracy : +-6% of FS I CEO, L Leak : 0 – 100 uA, 0-1,000 uA, 0-10,000 uA 2 ranges Accuracy : +-6% of FS H fe : 0-100 , 0- 1.000 , 0-10,000 3 ranges , Accuracy : +-20% Measurement Current : Vd, V be : Max 2 mA Hfe : Base current +-1% Collector Current Max 30 mA Measurement voltage : Max +-5V General specification : Input power : AC 220V , 50/60Hz Power consumption : 8 Watt Dimension : 350(W) x 135 (H) x 225 (D) mm

Accessories : – Dual Banana Plug-BNC Cord : 2 pcs – Banana plug Alligator clip : 2 pcs – Power Cord – Operating manual
