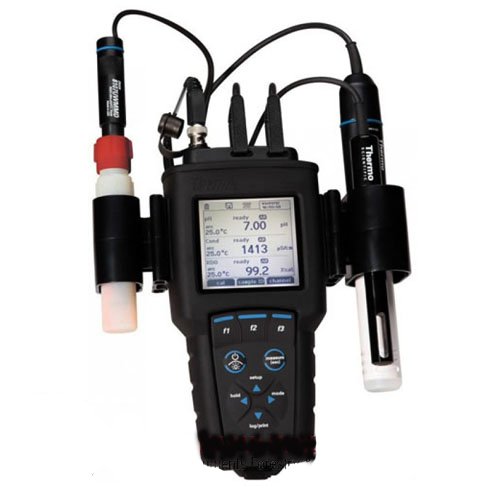

THERMO SCIENTIFIC Orion Star A3295 pH/ISE/Cond/DO Portable Meter

THERMO SCIENTIFIC Orion Star A3295 pH/ISE/Cond/DO Portable Meter Thermo Scientific Orion Star A 300 meters features an intuitive user interface with plain language screen prompts. A large, backlit graphic LCD, shows measurement and temperature along with electrode status, time/date, sample ID, user ID, and calibration data. GLP-related features include 5000 data points with time/date stamp and electrode verification. Meter utilizes RS-232 or USB for connectivity and includes data analysis software.

Description :

GLP-related features include 5000 data points with time/date stamp and electrode verification. Meter utilizes RS-232 or USB for connectivity and includes data analysis software.

Available as meter only and as complete meter kit configurationsKit includes ROSS pH/ATC electrode, Conductivity probe, RDO optical probe, 10 pouches each of 4, 7, 10 buffer, 1413µS standard, and rinse solution, protective armor with probe holders, hard carrying case, and four AA batteries.

Orion Star A320 series portable meters provide the largest storage capacity available for time-stamped data points, which can be conveniently uploaded to a PC through the meter’ s USB and RS-232 ports. Automatic or 1 to 5 point manual pH/ ISE and conductivity calibration and a variety of DO calibration options make instrument setup simple, while icons provide quick updates on battery life, electrode status and calibration information. The simple button layout and on-screen messages also assist with calibration and explain setup menu choices.

Specifications :

• Meter style    Portable
• Dimensions (” W)    4.25
• Dimensions (” H)    9.125
• Dimensions (” D)    2.375
• Range (pH)    2.000 to 20.000
• Range (mV)    ± 2000
• Range (Conductivity)    0.001µ S to 3000 mS
• Range (TDS)    0 to 200 ppt
• Range (Salinity)    0 to 80 ppt
• Range (Resistivity)    2 ohm to 100 mega-ohm
• Range (ISE)    0 to 19999 ppm
• Range (Dissolved oxygen)    0 to 90 mg/L; 0 to 600 %
• Range (Temperature °C)    5 to 105
• Resolution (pH)    0.1/0.01/0.001
• Resolution (Temperature)    0.1
• Resolution (mV)    0.1/1
• Resolution (Conductivity)    0.001, 0.01, 0.1 µS; 0.01, 0.1 mS
• Resolution (TDS)    Up to 4 digits
• Resolution (Resistivity)    2 ohms-cm
• Resolution (ISE)    Up to 3 digits
• Resolution (Salinity)    0.1 ppt, 0.01%
• Accuracy (pH)    ±0.002 pH
• Accuracy (Temperature)    ±0.1°C
• Accuracy (mV)    ±0.2 mV or 0.05%, whichever is greater
• Accuracy (Resistivity)    ±0.5% ±1 digit
• Accuracy (ISE)    ±0.2 or 0.05% of reading
• Accuracy (Conductivity)    ±0.5% full-scale ±1 LSD
• Accuracy (TDS)    ± 0.5% full-scale
• Accuracy (Salinity)    ± 0.1 ppt
• Accuracy (Dissolved Oxygen)    ±0.2 mg/L
• Temperature compensation    Automatic or manual
• Display    LCD, graphic
• Interface    USB or RS232
• Calibration    Up to 5 points
• Connections    BNC, Temp 8-pin mini-DIN
• Waterproof    Yes
• Buffer recognition    USA, NIST, DIN
• Power    Four AA batteries (included), optional universal AC adapter
• Battery life    800 hours
• Datalogging (points)    5000
• CE Compliance    Yes
• Brand    Thermo Scientific Orion
• Product Type    Multiparameter Meter
• Model    STAR A329
