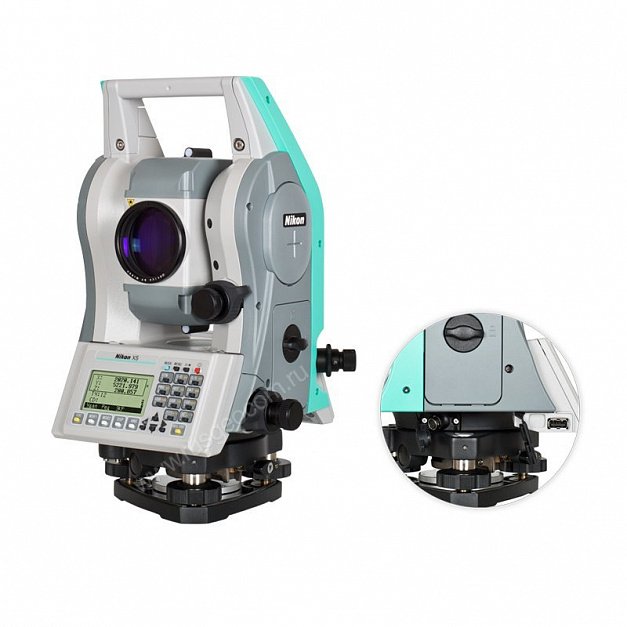

Total Station Nikon XS 3
Rp 79.500.000 *Inc. PPN
- Angle accuracy: 1″ (0.3mgon) / 2” (0.6mgon) / 3″ (1.0mgon) / 5” (1.5mgon) (ISO 17123-3)
- EDM type: Reflectorless technology
- Distance accuracy: (2mm + 2ppm) All models
- Distance range: Up to 5,000m (16,404 ft) to single prism (ISO 17123-4)
- Reflectorless range: Up to 800 m (2,625 ft) (KGC 90%)
- Compensator: Dual axis
- Others: Autofocus
Related Products
Total Station Nikon XS3 merupakan seri terbaru dari merek Nikon pengembangan dari seri NPL. Nikon XS 3 ini sudah dilengkapi dengan kemampuan laser sampai 800 meter., untuk memudahkan pekerjaan survey anda seri ini sudah dilengkapi layar ganda. Dan untuk menjaga keamanan alat ini juga sudah dilengkapi PIN, jadi apabila terjadi hal-hal yang tidak diinginkan alat anda sudah terproteksi. Total Station Nikon XS 3 ini mempunyai akurasi sudut 3 detik.
Dengan desainnya yang ringan, ringkas, dan pengaturan yang mudah, total station mekanis Nikon XS 3 membuat survei bekerja cepat, efisien dan mudah. Perangkat lunak onboard-nya memastikan alur kerja yang lancar dan efisien dari lapangan ke kantor. Ketika Anda bekerja dengan Nikon XS, Anda menyelesaikan pekerjaan benar pertama kali.
Total Station Nikon XS 3 mudah digunakan dan tahan lama. Ringan dan mudah dibawa mengurangi kelelahan pengguna, memungkinkan untuk hari kerja yang panjang, bahkan saat menangani kondisi tempat kerja yang sulit. Paling penting: sangat akurat dan didukung oleh jaminan kualitas Nikon. Anda dapat mengandalkannya untuk melakukan pengukuran yang tepat, proyek demi proyek, tahun demi tahun.
Fitur Nikon XS3
- Autofocus
- Dual-face displays
- Fast, powerful EDM PIN security
- 3″accuracies
- Nikon onboard software
- Hot swappable batteries
Spesifikasi Nikon XS 3 Total Station
|
General
|
|
| Weight | 9.5 lbs (4.3 kg) |
| Dimensions | 8.1″ L x 6.7″ W x 12.5″ H (20.57 cm x 17.02 cm x 31.75 cm) |
| Warranty | 2-year |
| Protection Class | IP66 dustproof and water jet resistant |
| Tripod Thread | 5/8-11 |
| Auto Shut Off | No |
| Internal Memory | 50,000 points |
| Software | Nikon onboard |
| Tribrach | No |
| Auto-Tracking Speed | No |
| Guide Light | No |
|
Angle Measurement
|
|
| Measuring Method/Reading System | Absolute encoder |
| Detection Method | No |
| Minimum Reading | 1 second |
| Accuracy | 1 second, 2 second, 3 second, 5 second |
| Diameter of Circle | 2.4-inch (60.96 mm) |
| Display Method | No |
|
Distance Measurement
|
|
| Unit of Measure (distance display) | m/ft |
| EDM Accuracy (Precision) | ±(2+2 ppm × D) mm |
| Minimum Reading | No |
|
Tilt Sensor/Compensator
|
|
| Range | ±3 degrees |
| Type | Dual-axis |
| Method | Liquid-electric detection |
| Setting Accuracy | No |
|
Battery/Power
|
|
| Power Source | 2 x Internal Li-ion battery |
| Battery Life | Up to 22 hours (continuous angle-only measurement); up to 18 hours (distance/angle measurement AF every 30 seconds); up to 10 hours (continuous distance/angle measurement) |
| Battery Life Alert | No |
| Voltage | 3.6-volt |
|
Optical Plummet
|
|
| Image | Erect |
| Magnification | 30x |
| Field of View | 1°25′ |
| Focus Range | No |
|
Level
|
|
| Plate/Tubular Bubble Vial | No |
| Circular Bubble Vial | 10 minutes (2 mm) |
| Electronic Level | No |
|
Telescope
|
|
| Length of Tube | 4.9 in (124.46 mm) |
| Image | Erect |
| Diameter of Objective Lens (Aperture) | 1.77 in (45 mm) |
| Magnification | 30x |
| Field of View | 1°25′ |
| Resolving Power | 3″ |
| Minimum Focus Distance | 4.92 ft. (1.5 m) |
| Ratio of Stadia Lines | No |
| Sight Distance Precision/Focus Range | No |
| Reticle Illumination | No |
| Reflectorless | Yes |
| Quick Sights (Rough Sights) | No |
|
Display and Keypad
|
|
| Type | LCD display |
| Sides | Dual |
| Keys | Full numeric keypads |
| Touchscreen | No |
| Backlight | Yes |
| Pixels | 128 x 64 pixels |
|
Temperature
|
|
| Operating | -4 to 122 °F (-20 to 50°C) |
| Storage | -22 to 140 °F (-25 to 60 °C) |
|
Applications
|
|
| Surveying and Construction | Yes |
| Mapping and GIS (geographic information systems) | Yes |
| Utilities | Yes |
| Environment Studies | Yes |
| Geomarking | Yes |
| Archaeology | Yes |
| Accident Reconstruction | Yes |
|
Measurement Range (under fair weather conditions)
|
|
| Single Prism | Up to 4.9 feet to 16,404 feet (1.5 m to 5,000 m) |
| Triple Prism | N/A |
| No Prism | Up to 2,625 feet (800 m) |
| Mini Prism | N/A |
| Reflective Tape | N/A |
| Reflector Sheet | Up to 4.9 feet to 984 feet (1.5 m to 300 m) |
| Cat Eye/Flat Prism | N/A |
| 360 Degree Prism | N/A |
|
Functions
|
|
| Coordinate Measurement Point | Yes |
| Angle and Distance Stake Out | Yes |
| Stake Out Line | Yes |
| Offsets | Yes |
| Missing Line | Yes |
| Remote Elevation | Yes |
| Resection | Yes |
| Area Calculation | Yes |
| Real-Time Video Imaging | No |
|
Measurement Time
|
|
| Fine | No |
| Rapid | No |
| Tracking | No |
|
Laser Plummet
|
|
| Accuracy | No |
| Class | Class 2 |
| Wavelength | No |
|
Laser Pointer
|
|
| Class | No |
| Accuracy | No |
| Reflectorless range | No |
| Wavelength | No |
| Range to reflective tape | No |
| Range to glass prism | No |
|
Interface
|
|
| Bluetooth | Yes |
| USB | 1 (host) |
| Pin Port | RS-232C |
| Operating System | No |
|
RC-PR5 Remote Control System
|
|
| Operating Range | N/A |
| Measuring Time | N/A |
|
Auto-pointing
|
|
| One AP Prism | No |
| Reflective Sheet | No |
| 360 Degree Prism | No |
| Mini Prism | No |
