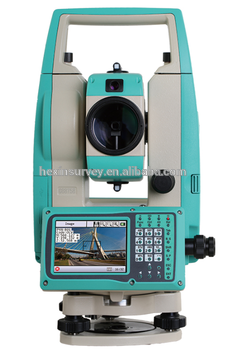

Total Station RUIDE RIS


Brand Name: Ruide
Model Number: RIS
Magnification: 30X
Angle Measurement Accuracy: 2″
One prism: 5000m
Non prism: 600m
Distance Measurement Accuracy: (2+2ppm*D)mm
Meteorologic correction: Auto
Data interface: RS232/SD card/Mini USB
Working time: 16h
Weight: 5.4kg
Display: 3.7 inch touch screen

Total Station RUIDE RIS LASER/REFLECTORLESS with Bluetooth n touch screen

General introduction:
Total station RIS Series provides stunningly long non-prism range, color screen, camera, and Bluetooth connection.

Features :

1. RUIDE Ris Non-prism distance range up to 600m
2. Ruide Ris Pro is equipped with 0.8 mega pixel camera in front of the EDM
3. With 3.7″ super arge touch and color screen
4. With quick MEAS Button
5. The ATMOS sense automatically corrects the distance data effected by atmospheric factor
6. With bluetooth and optional fieldgenius software
7. Varied program

Quick Details

Place of Origin: Guangdong, China (Mainland)
Brand Name: Ruide
Model Number: RIS
Magnification: 30X
Angle Measurement Accuracy: 2″
One prism: 5000m
Non prism: 600m
Distance Measurement Accuracy: (2+2ppm*D)mm
Meteorologic correction: Auto
Data interface: RS232/SD card/Mini USB
Working time: 16h
Weight: 5.4kg
Display: 3.7 inch touch screen

Specification :

TELESCOPE

Length

152mm

Objective Lens Diameter

Telescope:45mm Distance Meter:47mm

Magnification

30X


Erect

Field of View

1°30′

Resolving Power

3″

Mini.Focus

1.0m

DISTANCE MEASUREMENT

Single Prism

4000m*1

Non-Prism

600m*2

Accuracy  -Prism Mode

±(2mm+2ppm×D)m.s.e.*3

              -Non-Prism Mode

±(3mm+2ppm×D)m.s.e.*3

Measuring Time

Fine:0.3s,Normal:0.2s ,Tracking:0.1s*4

Meteorologic Correction

ATMOSense(Auto Sensing)

Prism Constant

Manual Input

ANGLE MEASUREMENT

Method

Absolute Encoding

Detecting System

H:2sides,V:2sides

Min.Reading

1″

Accuracy

2″

Diameter of Circle

79mm

Vertical Angle 0°

Zenith 0°/Horizontal:0°

Unit

360°/400gon/6400mil

DISPLAY

Display Unit

3.7″Color&Touch Screen

No.of Display

2 sides

Keyboard

Alphanumeric Key

TILT CORRECTION

Sensor

Dual Axis

Method

Liquid Electric

Range

±6′

Setting Unit

1″

LEVEL SENSITIVITY

Plate Level

30″/2mm

Circular Level

8′/2mm

OPTICAL PLUMMET (OPTIONAL:INTERNAL LASER PLUMMET)


Etrct

Magnification

3X

Focusing Range

0.3m~∞

Field of View

DATA STORAGE &INTERFACE

Internal Memory

160,000 Points

Date Interface

RS 232/SD-card/USB Pen Drive/Mine-USB

Wireless Communication

Bluetooth 3.0

GENERAL

Q-MEAS Button

Yes

Camera

N0

Weight&Dimension

5.4kg,340mm(H)×160mm(W)×150mm(L)

Working Temperature

–20℃~+50℃

Battery Type

Rechargeable Li-on Battery 3900mAh

Battery Voltage

DC 7.4V

Working Time

16h

Standar Aksesoris Ruide RIS

  • 2x Alumunium Tripod
  • 1x Pole Stik Prisma
  • 1x Prisma Polygon
  • 1x Prisma Single
  • Software & Cable Data



Jual Total Station RUIDE RIS dengan harga murah dan cari produk terbaik lainnya dari kategori Total Station dari Merek Topcon. Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online alat ukur dan alat survey mudah dan aman.

Kucari.com menyediakan berbagai total station dari supplier dan distributor resmi yang tersebar dibeberapa kota di Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Pelembang, Riau, Aceh, Manado, dan Bali Denpasar.
