TSI ALNOR 8530 DustTrak II Desktop Aerosol Monitor
Rp 293.750.000 *Inc. PPN
Ability set manual and programmable data logging functions (5 MB of on-board memory, >60,000 data points / 45 days at 1 min logging interval)
Measures aerosol concentrations corresponding to PM1, PM 2.5 and respirable PM10 or size fractions
Compatible with the Environmental Enclosure
Performs in-line gravimetric analysis for custom reference calibration
Automatic zeroing function (with optional zero module) will minimise the effect of zero drift
Features a STEL alarm set point
Compatible with Cloud Data Management System software for remote monitoring
Related Products

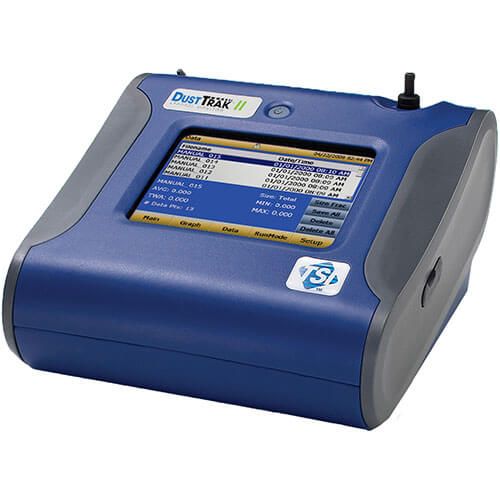

TSI ALNOR 8530 DustTrak II Desktop Aerosol Monitor is The DustTrak II Aerosol Monitor 8530 is a desktop light-scattering laser photometer which provides real-time aerosol mass readings. The unit is battery-operated and its suitability for different environments varies between clean office settings to harsh industrial workplaces. Other applications include construction and environmental sites and outdoor applications.
Description :
This Aerosol monitor from TSI is capable of measuring contaminants including dust, smoke, fumes and mists. The DustTrak II monitor features a sheath air system which isolates the aerosol in the optics chamber. This will keep the optics clean which allows for improved reliability and little maintenance.
For more technical information see the specification sheet and check the table on the right for information on what’s included.
KEY FEATURES :
- Ability set manual and programmable data logging functions (5 MB of on-board memory, >60,000 data points / 45 days at 1 min logging interval)
- Measures aerosol concentrations corresponding to PM1, PM 2.5 and respirable PM10 or size fractions
- Compatible with the Environmental Enclosure
- Performs in-line gravimetric analysis for custom reference calibration
- Automatic zeroing function (with optional zero module) will minimise the effect of zero drift
- Features a STEL alarm set point
- Compatible with Cloud Data Management System software for remote monitoring
Dimensions
4.9 x 4.8 x 12.5” (12.5 x 12.1 x 31.6 cm)
Weight
2.9 lb (1.3 kg) 3.3 lb (1.5 kg) with battery
Aerosol Concentration Range
0.001 to 400 mg/m3
Resolution
±0.1% of reading or 0.001 mg/m3, whichever is greater
Zero Stability
±0.002 mg/m3 per 24 hours at 10 sec time constant
Flow Rate
3.0 L/min set at factory, 1.40 to 3.0 L/min, user adjustable
Flow Accuracy
±5% of factory set point, internal flow controlled
Temperature Coefficient
+0.001 mg/m3 per °C
Temperature
Operation Temp: 32 to 120°F (0 to 50°C)
Storage Temp: -4 to 140°F (-20 to 60°C)
Air Quality Meter merupakan suatu perangkat alat uji untuk mengukur dan memonitor kualitas udara, dengan menggunakan alat ini dapat diketahui tingkat kualitas udara sehingga didapatkan data yang terukur batas kualitas udara yang dihasilkan apakah masih dalam toleransi atau sudah terkena pencemaran udara. Air Quality Meter salah satu alat yang dirancang khusus untuk mendeteksi kualitas udara, Pengukur kualitas udara ini sangat dibutuhkan tidak hanya di lingkungan industri namun juga biasa digunakan untuk lingkungan yang bersifat general (umum). Air quality meter banyak juga digunakan oleh lembaga atau personal yang bergerak pada bidang lingkungan.
Belanja online Air Quality Meter anya di Kucari dengan kualitas terbaik, harga murah bersaing, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
Specification: TSI ALNOR 8530 DustTrak II Desktop Aerosol Monitor
| Weight | 3 kg |
|---|
