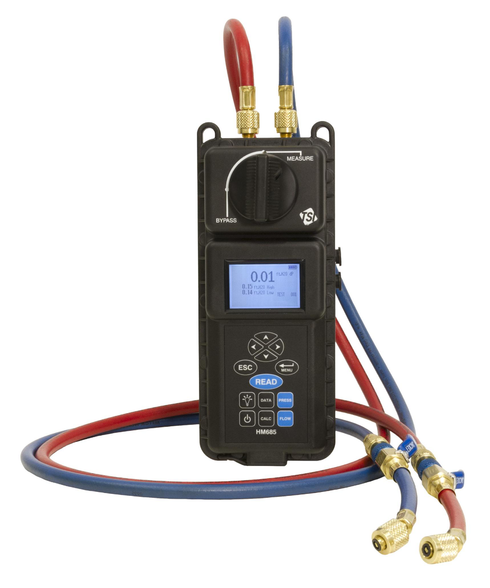

TSI ALNOR HM685 Hydraulic Manometer
Rp 87.500.000 *Inc. PPN
- Provides for inputs for two temperature probes
- Large backlit display for use in low light areas
- Operates on four alkaline or NiMH rechargeable batteries
- Reads inches H2O or Hg, ft H2O, psi, mm Hg, m H2O, kPa or bar
- Measures from 0 to 300 psi (0 to2068 kPa)
- Performs on-board universal flow and btu/hr calculations
- Displays volumetric flow when a Cv (Kv) factor is programmed
- Allows up to 100 Cv (Kv) factors to be entered
- NIST Certificate Included
- Calculates brake power, heat flow, Cv(Kv) factors, impeller sizing
- Stores up to 4,000 data points for recall or downloading
- Robust, splash-proof case
- Meter weight with batteries is 2.65 lbs (1.20 kg)
Related Products
TSI ALNOR HM685 Hydraulic Manometer is used to balance hydronic heating and cooling systems, check pump performance and set balancing valves. It can measure and display differential, high side and low side pressures simultaneously, without the need to change hose connections or instrument valve settings. The easy setup and intuitive operation make this instrument very simple to use.
Description :
- Applications for the HM685 Hydronic Manometer include:
- Test and balance heating and cooling systems
- Check pump performance
- Set balancing valves
Features :
- Provides for inputs for two temperature probes
- Large backlit display for use in low light areas
- Operates on four alkaline or NiMH rechargeable batteries
- Reads inches H2O or Hg, ft H2O, psi, mm Hg, m H2O, kPa or bar
- Measures from 0 to 300 psi (0 to2068 kPa)
- Performs on-board universal flow and btu/hr calculations
- Displays volumetric flow when a Cv (Kv) factor is programmed
- Allows up to 100 Cv (Kv) factors to be entered
- NIST Certificate Included
- Calculates brake power, heat flow, Cv(Kv) factors, impeller sizing
- Stores up to 4,000 data points for recall or downloading
- Robust, splash-proof case
- Meter weight with batteries is 2.65 lbs (1.20 kg)
What’s in the Box :
- Hard carrying case
- Two 6.7 ft by 1/4 inch (2 m x 6 mm) hoses with shut-off valves
- Two B&G readout probes
- Two P/T gauge adapter probes
- Power cord
- 4″ Temperature probe
- CompuDat USB downloading software
- USB interface cable
- NIST Certificate of Calibration
TSI ALNOR HM685 Hydraulic Manometer Dengan Harga murah dan cari produk terbaik lainnya dari kategori dari Manometer Merek TSI Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online alat ukur dan alat survey mudah dan aman.
Kucari.com menyediakan berbagai alat ukur dan instruments dari supplier dan distributor resmi yang tersebar dibeberapa kota di Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Pelembang, Riau, Aceh, Manado, dan Bali.
Daftarkan perusahaan Anda!
Anda adalah Agen, Vendor, Supplier & Distributor peralatan ukur dan perkakas untuk wilayah Indonesia? Daftarkan perusahaan Anda disini
Kucari.com merupakan situs penyedia direktori peralatan dan perkakas bisnis sebagai media promosi online berbasis web yang dapat menghubungkan supplier, distributor, agen, vendor dan pembeli antar bisnis (B2B – Business to Business) dan kalangan B2C (Business-to-Customer) dalam 24 Jam nonstop menjangkau seluruh wilayah Indonesia
Specification: TSI ALNOR HM685 Hydraulic Manometer
| Weight | 1 kg |
|---|
