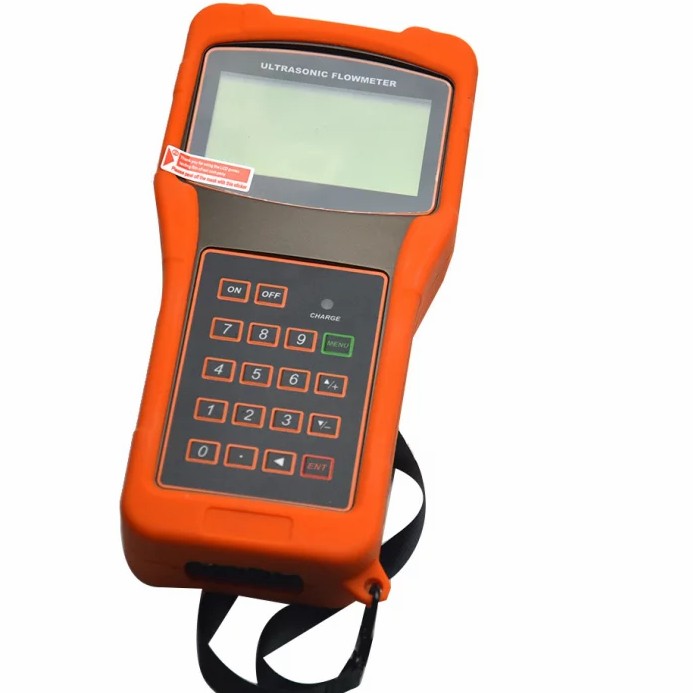

TUF-2000H Digital Ultrasonic Flowmeter Flow Meter TUF2000H
Rp 10.750.000 *Inc. PPN
Pengukur Aliran Ultrasonik Portabel TUF2000H 50-700mm TM-1
Flow Meter adalah alat untuk mengukur laju aliran atau jumlah suatu fluida yang bergerak mengalir
Jenis cairan yang diukur oleh flow meter bisa berbagai macam cairan seperti air minum, air limbah, air lumpur, susu, cairan kimia, air gula, alkohol, oli dll
Related Products
Pengukur Aliran Ultrasonik Portabel TUF2000H 50-700mm TM-1
Flow Meter adalah alat untuk mengukur laju aliran atau jumlah suatu fluida yang bergerak mengalir
Jenis cairan yang diukur oleh flow meter bisa berbagai macam cairan seperti air minum, air limbah, air lumpur, susu, cairan kimia, air gula, alkohol, oli dll

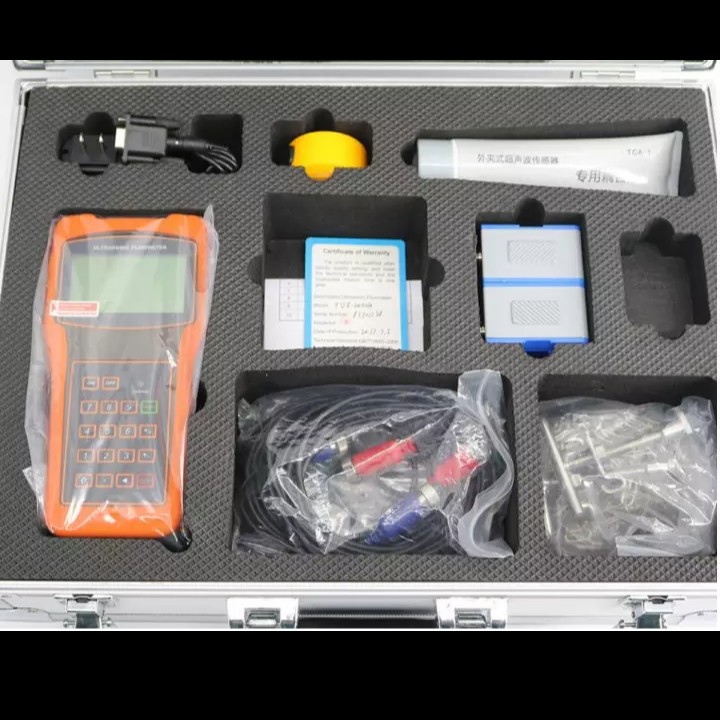

Ultrasonic Flow Meter TUF2000H mengukur laju aliran cairan dengan metode ultrasonik. Dilengkapi dengan transducer TM-1 untuk diameter pipa 50mm-700mm, Catatan: untuk foto fisik riil mengenai apa yang didapat dalam paket, bisa dicek foto no 5 dan 6. Harap diperhatikan
Spesifikasi
| Items | | Performance & Parameter |
|
Meter |
Principle | Transit time ultrasonic flowmeter |
| Accuracy | ± 1% | |
| Display | 4×16 character LCD with backlight | |
| Signal Output | 1 way OCT pulse output(Pulse width 6~1000ms, the default
value is 200ms) |
|
| Data Interface | Insulate RS232 serial interface, upgrade the flowmeter
software by computer |
|
|
Pipe Installation Condition |
Pipe Material | Steel, Stainless Steel, Cast Iron, Copper, Cement pipe, PVC,
Aluminum, Glass Steel product, liner is allowed. |
| Pipe Diameter | 15~6000mm (depends on transducer) | |
| Straight Pipe | Transducer installation should be satisfied: upstream 10D,
downstream 5D, 30D from the pump. |
|
|
Measuring Medium |
Type of Liquid | Single liquid can transmit sound wave, such as water, sewage,
oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. |
| Temperature | -30~160°c | |
| Turbidity | Less than 10000ppm and little bubble | |
| Flowrate | 0 ~ ±7m/s | |
| Working
Environment |
Temperature | main unit: -20~60°c; Transducer: -30~160°c |
| Humidity | main unit: 85%RH; Transducer protection level: IP67 | |
| Power Supply | 3 built-in Ni-MH batteries 1.2V (for over 12 hours of operation).
Achieve to continuous measurement by connecting AC 90V – 260V adapter. |
|
| Power Consumption | 1.5W | |
| Housing Material | Inflaming retarding ABS | |
| Main unit Weight | 390g | |
