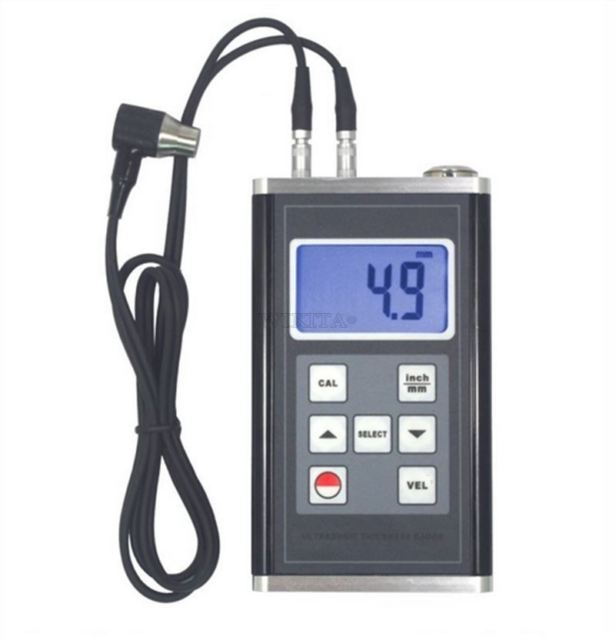

Ultrasonic Thickness Meter Landtek TM-8818

Description :

Applications :

Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries  of petroleum, shipbuilding,power station,and machine manufacturing.

Features :

Using the latest high performance and low power consumption microprocessor technology.
Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity,Conversely velocity is measurable with know thickness.
Automatic memory material code and sound velocity value, convenient to use.
Coupling symbol indication.
Automatic power off to conserve power.
Use “USB data output” and “RS-232 data output” to connect with PC. (NOTES: RS232/ USB cable+software is optional part)

Provide “Bluetooth™ data output” choice. (NOTES: Bluetooth data output with software is optional part)



Details :

Case Material:  Aluminum Alloy
Display: 4 Digit LCD
Operating Principle:Ultrasonic
Measuring Range (metric / Imperial): 0.9~400 mm (45 # steel)
Battery Indication:  Low Battery Indication
Sound Velocity:  1000~9000 m/s
Lower Limit Steel Pipes: Diameter 20 x 3.0 mm
Calibration Block:  Included
Resolution: 0.01 mm / 0.1 mm
Accuracy: ± (0.5%n + 0.1)
Automatic memory material code and the value of sound velocity
Power off:  Auto Power off & Manual Power Off
Operating  Conditions: Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply: 2 x 1.5 V AA (UM-3) Battery
Dimensions: 130 x 76 x 31 mm

Weight: 340 g (Not Including Batteries)

Standard Accessories :

1. Main Unit
2. 5MDiameter 8 Standard Sensor
3. Coupling Agent
4. Carrying Case

5. Operating Manual

Optional Accessories:
1. 6M Diameter 6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm
                                                                    Operating temperature: -10~60°C
2. 5M Diameter 12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature)
                                                                       Measuring range (steel) : 4.0~100.0 mm (high temperature)
                                                                       Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software

5. Bluetooth data output with software
