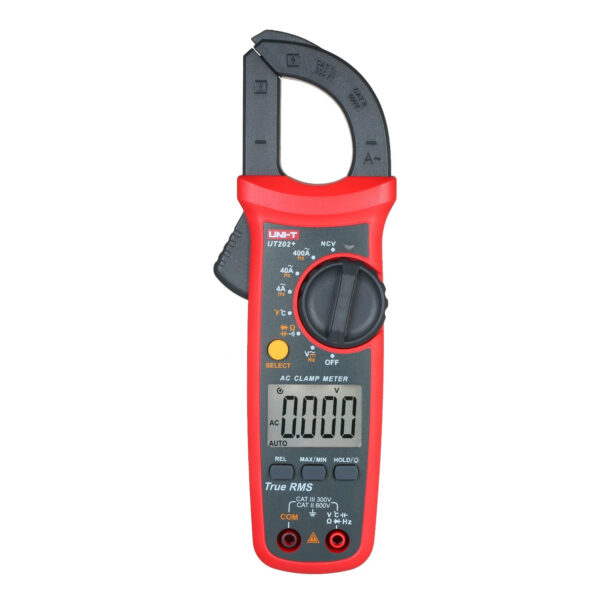

UNI-T UT202+ Clamp Meter Multimeter
Rp 1.200.000 *Inc. PPN
Alat pengukur klem RMS sejati jangkauan otomatis genggam seri UT200+, dirancang sesuai dengan standar keselamatan EN61010-2010 tingkat CAT II600V/CAT III 300V, dengan perlindungan anti-bakar roda gigi yang berfungsi penuh, dapat memenuhi persyaratan pengoperasian yang andal dan aman.
Related Products
Alat pengukur klem RMS sejati jangkauan otomatis genggam seri UT200+, dirancang sesuai dengan standar keselamatan EN61010-2010 tingkat CAT II600V/CAT III 300V, dengan perlindungan anti-bakar roda gigi yang berfungsi penuh, dapat memenuhi persyaratan pengoperasian yang andal dan aman.
FITUR UNI-T UT202+
| Display count | 4000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Live wire test | ||
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Zero mode | ||
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ |
SPESIFIKASI UNI-T UT202+
| Specifications | Range | UT202+ | UT204+ |
| AC current (A) | 400A | ±(2%+10) | |
| 600A | ±(2.5%+5) | ||
| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | |
| DC current (A) | 400A | ||
| 600A | ±(2.5%+5) | ||
| AC voltage (V) | 600V | ±(0.8%+5) | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) | |
| 10Hz~60kHz | ±(0.5%+2) | ||
| DC voltage (A) | 600V | ±(0.5%+2) | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) | |
| 60MΩ | ±(0.8%+2) | ||
| Capacitance (F) | 4mF | ±(4%+5) | |
| 40mF | |||
| 60mF | ±(4%+5) | ||
| Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) | ±(1.5%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | |
| Features | |||
| Display count | 4000 | 6000 | |
| Auto range | √ | √ | |
| Jaw opening | 28mm | 28mm | |
| True RMS | √ | √ | |
| NCV | √ | √ | |
| Live wire test | √ | ||
| Continuity test | √ | √ | |
| Diode | √ | √ | |
| MAX/MIN | √ | √ | |
| Relative mode | √ | √ | |
| Zero mode | √ | ||
| Data hold | √ | √ | |
| Low battery indication | √ | √ | |
| Auto power off | √ | √ | |
| General Characteristics | |||
| Power | AAA (Ro3) x 2 | ||
| Display | 37mm x 25mm | ||
| Product colour | Red and grey | ||
| Product net weight | UT202+：248g; UT204+:235g | ||
| Product size | 215mm x 63mm x 36mm | ||

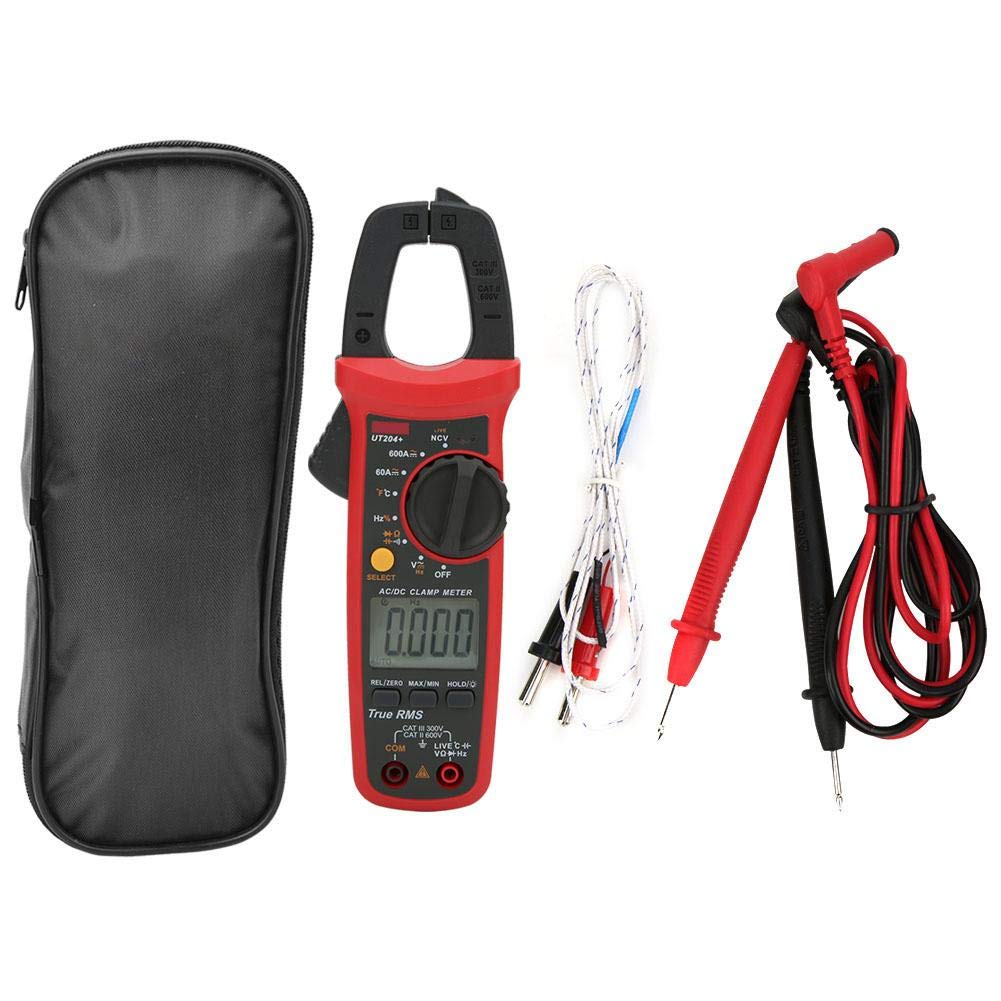

| Standard accessories | Batteries, test leads, Thermocouple (UT202+/UT204+) | ||

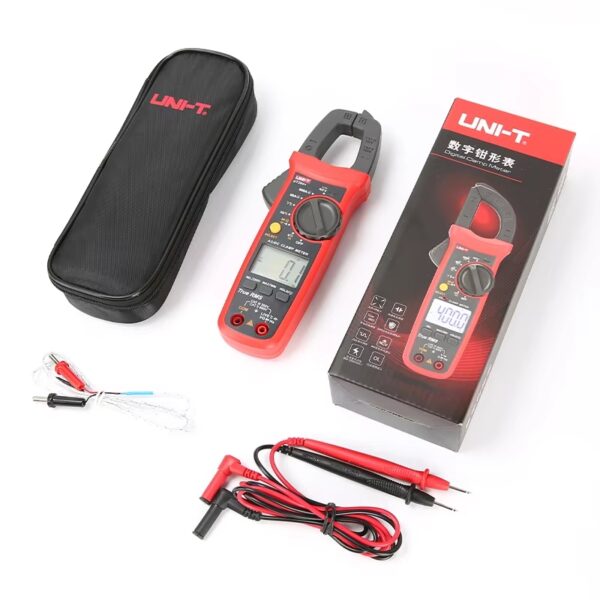

| Standard individual packing | Box, Carrying bag, English manual | ||
