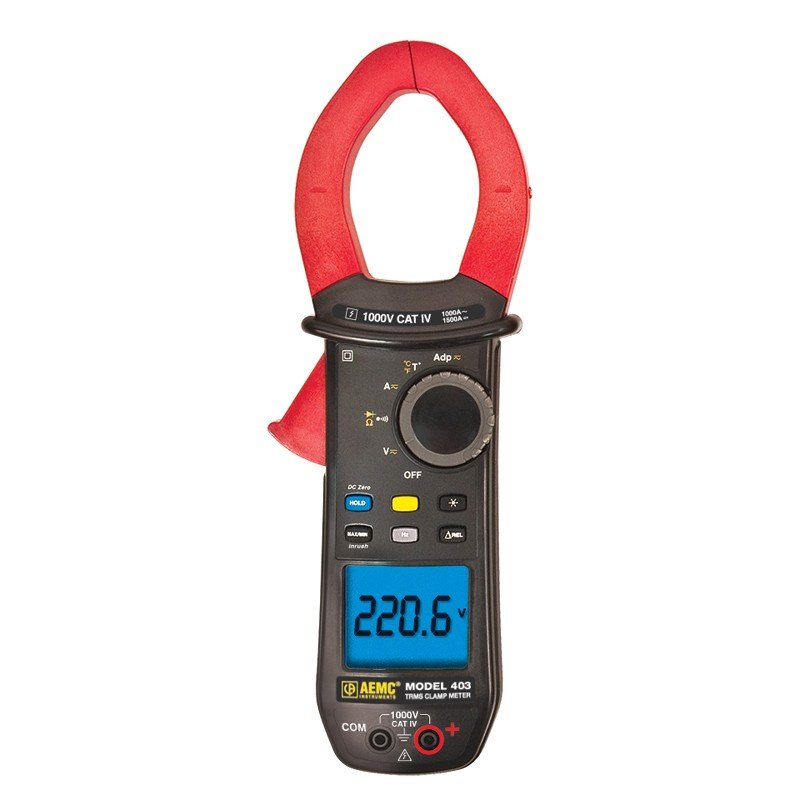

AEMC 403 (2139.21) DC True RMS Clamp-On Meter

TRMS Clamp-on Meter Model 403 provides a new standard for safety and measurement capability not available in any other clamp meter sold today. Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments. It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 403 offers several unequaled functions including: True InRush®, Adapter function, Delta relative function, Temperature measurement and more..

Features :

1000V CAT IV Rated
UL 94 flame retardant self-extinguishing
IP54 Rated
10,000-count blue electroluminescent backlit display
Measures up to 1000VAC (1400V peak), 1000VDC and AC and DC with resolution to 10mV
Measures up to 1000AAC and 2000ADC
Measures temperature in ?F or ?C using a K-type Thermocouple
Measures frequency to 20kHz with 0.1Hz resolution
Auto selects AC or DC measurement voltage
True InRush® current measurement with 1mS capture
Delta relative function for tracking deviation from reference values
Adapter function to accept inputs from sensors and transducers with a millivolt output with user programmable scaling
Jaw opening up to 1.89″
Leads are constructed with a flexible silicone material

What’s In The Box :

(1) AEMC 403 digital clamp-meter
(1) Test lead set
(1) Test probe set
(1) Alligator clip set
(1) K-type thermocouple probe with adapter
(4) AA batteries
(1) Hard carrying case
(1) Instructions
