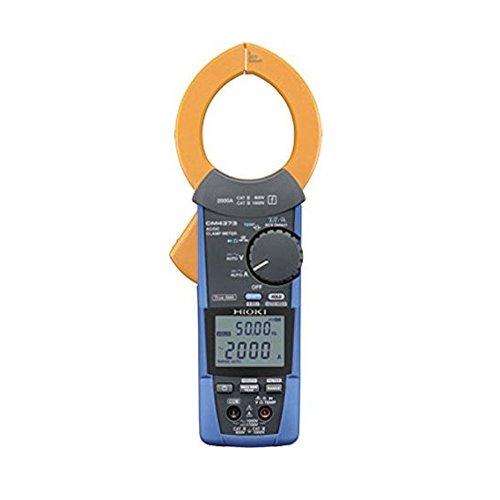

Hioki CM4373 AC/DC Clamp Meter
Rp 7.850.000 *Inc. PPN
- AC/DC Clamp Meter 2000A
- Multiple measurement functions such as current, voltage, resistance, ferequency, and voltage detection
- Simultancously measure inrush current in RMS and crest values
- Damage-resistant jaws (current sensor) provide even more years of reliable use.
- Expanded -25 °C to 65 °C operating temperature range
Related Products
Hioki CM4373 AC/DC Clamp Meter adalah alat ukur terbaik di kelasnya menggabungkan keahlian Hioki dalam teknologi penginderaan saat ini. Hioki CM4373 AC/DC Clamp Meter adalah 2000A True RMS klem meter yang memiliki rahang kuat, lebih luas -25 ℃ sampai 65 ℃ Kisaran suhu operasi dan IP54 tahan debu dan tahan air kandang untuk memungkinkan para profesional untuk bekerja dengan cepat dalam situasi sulit termasuk pengembangan, perbaikan, dan pemeliharaan peralatan dan perangkat seperti kendaraan listrik. Selain itu, tegangan tinggi DC kemampuan pengukuran hingga 1700 V sangat ideal untuk inspeksi pemeliharaan penjepit peralatan listrik dan surya.
Features Hioki CM4373 AC/DC Clamp Meter
- AC/DC Clamp Meter 2000A
- Multiple measurement functions such as current, voltage, resistance, ferequency, and voltage detection
- Simultancously measure inrush current in RMS and crest values
- Damage-resistant jaws (current sensor) provide even more years of reliable use.
- Expanded -25 °C to 65 °C operating temperature range
Specifications Hioki CM4373 AC/DC Clamp Meter
DC Current
600.0 A/2000 A, Basic accuracy: ±1.3% rdg. ±0.3 A (600 A range)
AC Current
600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy: ±1.3% rdg. ±0.3 A (at 600 A)
Crest factor
600.0 A range: 3 or less,
2000 A range: 2.84 or less
DC+AC Current
600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy: ±1.3% rdg. ±1.3 A (at 600 A)
DC Voltage
600.0 mV to 1500 V, 5 ranges, Basic accuracy: ±0.5% rdg. ±3 dgt.
AC Voltage
6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy: ±0.9% rdg. ±3 dgt.
DC+AC Voltage
6.000 V to 1000 V, 4 ranges, Basic accuracy: ±1.0% rdg. ±7 dgt.
Resistance
600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±5 dgt.
Electrostatic capacity
1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt.
Frequency
9.999 Hz to 999.9 Hz, Basic accuracy: ±0.1% rdg. ±1 dgt.
Temperature (K)
-40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C
Voltage detection
Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz
Other functions
Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment
Dustproof, waterproof
Grip: IP54 (when measuring an insulated conductor only), Jaw (the current sensor portion of the instrument)/ barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet.
Power supply
LR03 Alkaline battery ×2, Continuous use 45 hr (Backlight OFF)
Core jaw diameter
92 mm (3.62 in) W×18 mm (0.71 in) D, φ55 mm (2.17 in)
Dimensions and mass
65 mm (2.56 in) W×250 mm (9.84 in) H×35 mm (1.38 in) D mm, 530 g (18.7 oz)
Accessories
TEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery ×2, Instruction Manual×1
Salah satu keuntungan dari metode ini adalah kita bahkan dapat mengukur arus tinggi tanpa harus mematikan terlebih dulu rangkaian yang akan diukur.
