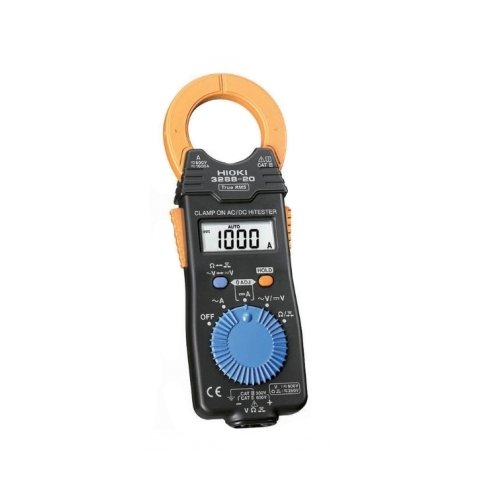

Hioki 3288-20 AC/DC Clamp Hitester
Original price was: Rp 4.250.000.Rp 3.850.000Current price is: Rp 3.850.000. *Inc. PPN
- Digital clamp-meter measures AC and DC to 1,000A, AC and DC voltage to 600V, and resistance to 42 megohms
- True RMS sensing meter provides accurate readings when measuring linear or non-linear loads, regardless of waveform
- Clamp measures current without touching or interrupting the circuit, has a jaw opening of 35mm (1.38 inches), and has 10mm (0.39 inches) thick jaws that can open and close independently of one another
- Meter is sized for portability, weighing 150g (5.3oz.), with an overall length of 180mm (7.09 inches)
- Meets EN safety standards 61010-1, 61010-031, and 61010-2-032, and is rated for CAT III installations to 600V for current measurement and to 300V for voltage measuremen.
Related Products
Hioki 3288-20 AC/DC Clamp Hitester adalah penginderaan RMS benar, manual-dan auto-mulai multimeter untuk mengukur arus, tegangan, dan resistansi dalam aplikasi pengujian listrik. Ia memiliki penjepit yang mengukur AC (alternating current) dan DC (direct current) ke 1,000A (ampere). klem memiliki dua rahang yang dapat menutup sekitar konduktor listrik sampai dengan 35mm (1,38 inci) dengan diameter untuk mengukur arus tanpa menyentuh atau mengganggu sirkuit. Setiap rahang bisa dibuka bisa ditutup secara independen dari yang lain dan 10mm (0,39 inci) tebal agar sesuai antara konduktor sempit spasi. Satu set lead tes disertakan untuk mengukur AC dan tegangan DC ke 600V, dan ketahanan terhadap 42MΩ (megaohms). Meter memiliki saklar putar untuk memilih properti untuk mengukur, dan LCD 4199-hitungan. Untuk membantu dokumentasi bacaan dan menangkap bacaan dalam ruang yang ketat, data terus fungsi terus membaca terbaru pada layar setelah memutuskan hubungan dari sirkuit. Sebuah buzzer kelangsungan menegaskan bahwa rangkaian melakukan listrik. Unit beroperasi pada baterai CR2032 tunggal, dan mati secara otomatis setelah 10 menit non-penggunaan untuk menghemat baterai. Ia memiliki indikator baterai rendah yang sinyal ketika baterai perlu diganti.
Features Hioki 3288-20 AC/DC Clamp Hitester
- Digital clamp-meter measures AC and DC to 1,000A, AC and DC voltage to 600V, and resistance to 42 megohms
- True RMS sensing meter provides accurate readings when measuring linear or non-linear loads, regardless of waveform
- Clamp measures current without touching or interrupting the circuit, has a jaw opening of 35mm (1.38 inches), and has 10mm (0.39 inches) thick jaws that can open and close independently of one another
- Meter is sized for portability, weighing 150g (5.3oz.), with an overall length of 180mm (7.09 inches)
- Meets EN safety standards 61010-1, 61010-031, and 61010-2-032, and is rated for CAT III installations to 600V for current measurement and to 300V for voltage measurement
Specifications Hioki 3288-20 AC/DC Clamp Hitester
DC current
100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC current
100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC voltage
419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC voltage
4.199 V to 600 V, 4 ranges,Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, Average rectified)
Resistance
419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions
Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display
LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply
Coin type lithium battery (CR2032) ×1, Continuous use 60 hours
Core jaw dia.
φ 35 mm (1.38 in)
Dimensions and mass
57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)
Accessories
Instruction manual ×1, Test Lead L9208 ×1, Carrying Case 9398 ×1
