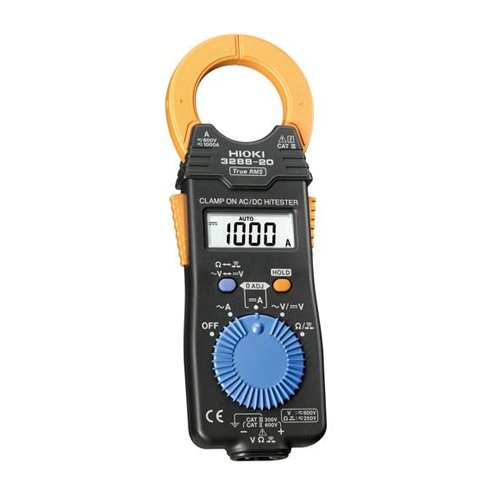

HIOKI 3288 Clamp On AC/DC HiTester


  • Model 3288-20: True RMS
  • Use the 3288 for high current measurements such as UPS emergency batteries and train motors
  • Voltage, resistance, and continuity check functions

Rp2.035.500

HIOKI 3288 Clamp On AC/DC HiTester adalah alat ukur terbaik di kelasnya menggabungkan keahlian Hioki dalam teknologi penginderaan saat ini. The 3288 adalah AC / DC arus dan tegangan klem meter yang juga mengukur kontinuitas dan resistensi, menampilkan sebuah tuas rahang ganda dan profil ramping untuk memudahkan akses ke kabel ramai.

Features HIOKI 3288 Clamp On AC/DC HiTester

  • Model 3288-20: True RMS
  • Use the 3288 for high current measurements such as UPS emergency batteries and train motors
  • Voltage, resistance, and continuity check functions

Specifications HIOKI 3288 Clamp On AC/DC HiTester

DC current 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
AC current 100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),Basic accuracy: ±1.5 % rdg. ±5 dgt.
DC voltage 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
AC voltage 4.199 V to 600 V, 4 ranges,Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, Average rectified)
Resistance 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
Other functions Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
Power supply Coin type lithium battery (CR2032) ×1, Continuous use 60 hours
Core jaw dia. φ 35 mm (1.38 in)
Dimensions and mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)
Accessories Instruction manual ×1, Test Lead L9208 ×1, Carrying Case 9398 ×1



Jual HIOKI 3288 Clamp On AC/DC HiTester dengan harga murah, diskon dan cari produk HIOKI lainnya dari kategori Clamp Meter. Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Indogeotech, belanja online mudah dan aman.
