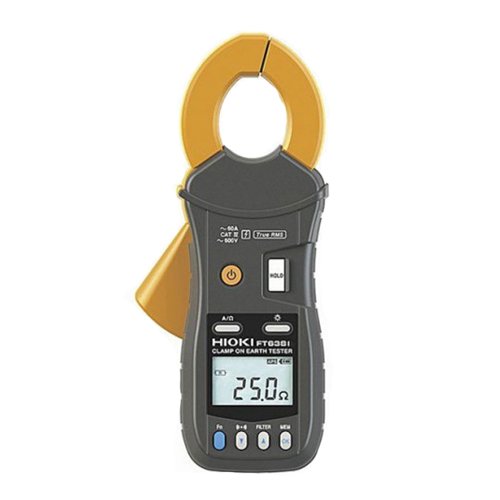

Hioki FT6381 Clamp on Earth Tester with Bluetooth
Rp 25.250.000 *Inc. PPN
- Earth resistance measurement for multi-grounded systems
- Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
- Measure load current up to 60.0 A range
- Clamp at the narrowest point
- Large storage capacity (up to 2000 data)
- Data transfer to Android phones using Bluetooth wireless technology
- Real time data transfer, automatic report generation on Android phone
Related Products
Hioki FT6381 Clamp on Earth Tester with Bluetooth ukuran landasan hanya dengan menjepit ke beberapa beralasan kabel tanah. Tidak ada batang grounding tambahan yang dibutuhkan, dan tidak ada kebutuhan untuk memutuskan kawat tanah dari batang grounding. Kompak, sensor low-profile dapat digunakan untuk menjepit kabel tanah dengan mudah, dan juga menyediakan AC fungsi pengukuran arus dan dapat mengukur arus mulai dari kebocoran arus pada urutan beberapa mA untuk memuat arus hingga 60 A.
features Hioki FT6381 Clamp on Earth Tester with Bluetooth
- Earth resistance measurement for multi-grounded systems
- Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
- Measure load current up to 60.0 A range
- Clamp at the narrowest point
- Large storage capacity (up to 2000 data)
- Data transfer to Android phones using Bluetooth wireless technology
- Real time data transfer, automatic report generation on Android phone
Specifications Hioki FT6381 Clamp on Earth Tester with Bluetooth
Measurement principle
Instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated
Note: For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value.
Earthing resistance
0.20 Ω (0.01 Ω resolution) to 1600 Ω (20 Ω resolution), 10 ranges, Zero suppression: Less than 0.02 Ω,
Accuracy: ±1.5 % rdg. ±0.02 Ω
AC Current measurement
20.00 mA (0.01 mA resolution) to 60.0 A (0.1 A resolution), 5 ranges, Zero suppression: Less than 0.05 mA,
Accuracy: ±2.0 % rdg. ±0.05 mA (30 Hz to 400 Hz, True RMS), Crest factor 5.0 or less (for the 60 A range, 1.7 or less)
Max. allowable input
100 A AC continuous, AC 200 A for 2 minutes or shorter (at 50/60 Hz, requires derating at frequency)
Max. rated voltage to earth
600 V AC CAT IV
Memory function
2000 data
Alarm function
For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold
Other functions
Data hold, Backlight, Filter, Auto power save
Display
Digital LCD, max. 2000 dgt., Display refresh rate: 500 ms (2 times/s)
Waterproof and dustproof
IP40 (EN60529) with clamp sensor closed
Communication interface
Model FT6381 only: Bluetooth® v2.1+EDR, Compatibility for Smartphone / Tablet, Displays measured values on the screen of an Android™ handset via Bluetooth®, Applicable OS: Android™ 2.1 or later
Power supply
LR6 (AA) alkaline battery ×2, Max. rated power: 450 mVA, Continuous use : 35 hr (in-house testing conditions)
Core jaw dia.
φ 32 mm (1.26 in)
Dimensions and mass
73 mm (2.87 in)W × 218 mm (8.58 in)H × 43 mm (1.69 in)D, 620 g (21.9 oz)
Accessories
Carrying case ×1, Resistance check loop (1 Ω, 25 Ω) ×1, Strap ×1, LR06 (AA) alkaline battery ×2, Instruction manual ×1
Salah satu keuntungan dari metode ini adalah kita bahkan dapat mengukur arus tinggi tanpa harus mematikan terlebih dulu rangkaian yang akan diukur.
