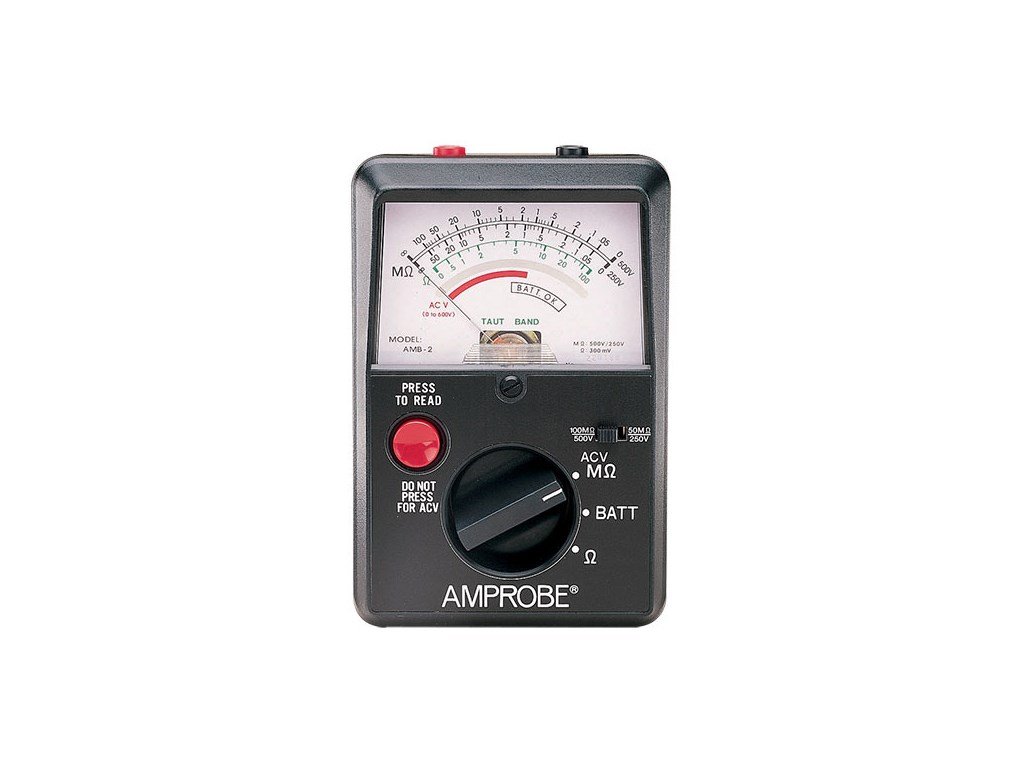

AMPROBE AMB2 Insulation Tester

AMPROBE AMB2 Insulation Tester is quality does not have to be expensive. These affordable megohmmeters still offer a solid range of features designed to meet most insulation test applications.

Features :

Tests insulation of wires, cables, transformers and electrical motors
Battery powered
Helps cut unscheduled downtime and reduce shock hazards
Sensitive Ohmmeter for checking resistance of motor windings
Built in voltmeter
Battery OK test
Mirror scale
Automatic discharge of equipment capacitance for safe removal of test leads
Limited Life Time Warranty

Specifications :

Insulation resistance with 250VDC test voltage:  0-50M ±5% Rdg @ (0.1 – 10M) ± 10% Rdg @ > 10M
Insulation resistance with 500VDC test voltage:  0-100M ± 5% Rdg @ (0.1 – 10M) ± 10% Rdg @ > 10M
Voltmeter:  0-600V AC/DC ±(1.5% Rdg + 3 LSD)
Low resistance:  0-100 ± 3% Rdg
UPC/DCI: 11860
Size: 10.50×8.50×6.25 inch
Weight: 2.65

Includes :

Carrying case
Test Leads
Fuse
