AEMC CA6116N-Kit (2138.10) Multifunction Installation Tester

Multi-function instrument for testing electrical installations for compliance with national and international standards (IEC 60364-6, NF C 15-100, VDE 100, FD C 16-600, and others). It features advanced design, ergonomics, simplicity, performance, speed, and accuracy.

Suitable for all neutral systems (TT, TN, IT), the instrument is ideal for all sectors including industrial, residential, and others. The rugged and compact C.A 6116N has a large LCD graphical color display with backlighting.

All measurements required to test an electrical installation are available, including continuity, resistance, insulation, earth and selective earth, loop impedances, type A and AC RCDs. The instrument can also measure voltage, frequency, current (via a clamp), active power, harmonics, and phase rotation. The instrument can store up to 1,000 tests, which can be downloaded to a computer via USB cable. Downloaded data can then be processed with DataView® data analysis software.

Features :

Testing according to the international standards: IEC 60364-6, NF C 15-100, VDE 100, XP C 16-600, etc.
Simple, reliable connection thanks to the contextual help for each function, including all the connection diagrams
Suitable for all neutral systems (TT, TN, IT)
Type-B RCD testing available
Integrated fuse table for quick reading of the results on the instrument
Li-Ion battery for a longer battery life
Measurements: voltage, current via clamp, power, waveforms and harmonics.
Measurement of voltage drop for correct sizing of conductor diameters
Loop measurement with 1 mΩ resolution

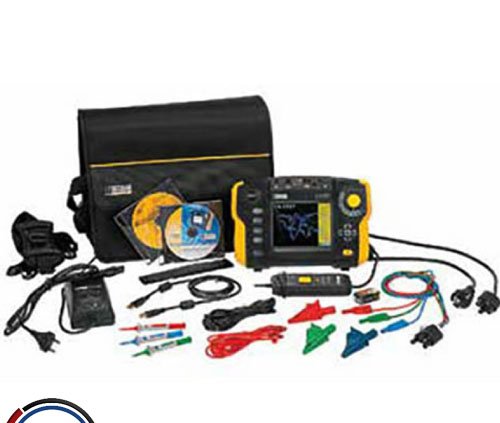

What’s In The Box :

(1) Multi-Function Installation Tester (C.A 6116N)
(1) C177A Clamp
(1) Carrying Bag
(1) Power Cord (US)
(1) Power Charger (US)
(1) Li-ion Battery Pack (in the tester)
(1) USB A/B cable
(3) 3-Prong Safety Voltage Lead
(3) Test Probe (Red, Green, Blue)
(3) Alligator Clip (Red, Blue, Green)
(2) Color-Coded Safety Lead (Red, Black) with 4mm Staight Plug
(1) 3-Prong US Measurement Cord
(1) Remote Test Probe
(1) Wrist Strap
(1) DataView software
(1) User Manual
