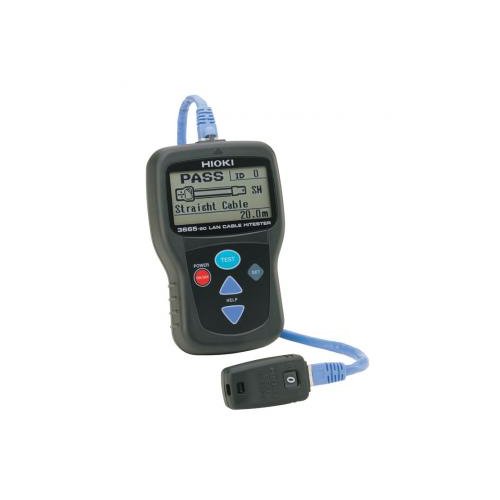

Hioki 3665-20 LAN Cable HiTester


  • Identify the 3 most important criteria for proper networking at a glance
  • Wire map check: detect split pairs with wiring check
  • Cable length: get NVP-Enhanced measurement accuracy
  • Direction check: identify up to 21 cable destinations
  • Compatible connectors: RJ-45 plugs

Rp4.036.500

Hioki 3665-20 LAN Cable HiTesteradalah genggam LAN kabel tester untuk dengan mudah menguji peta kawat, mengukur panjang kabel dan mengidentifikasi kabel twisted-pair, dan berguna untuk memverifikasi koneksi setelah menginstal konektor pada kabel. terminator opsional yang memfasilitasi memudahkan identifikasi beberapa kabel membuat kabel LAN tester terutama nyaman untuk kabel pengujian di jaringan bekerja dalam hal kesalahan yang disebabkan oleh terbuka atau korsleting kabel kabel.

Features Hioki 3665-20 LAN Cable HiTester

  • Identify the 3 most important criteria for proper networking at a glance
  • Wire map check: detect split pairs with wiring check
  • Cable length: get NVP-Enhanced measurement accuracy
  • Direction check: identify up to 21 cable destinations
  • Compatible connectors: RJ-45 plugs

Specifications Hioki 3665-20 LAN Cable HiTester

Measurable cable

Twisted-pair cable, characteristic impedance: 100 Ω, shielded and unshielded, CAT 3, 4, 5, 5e and 6

Compatible connectors

RJ-45 plugs

Wire map test

Detectable errors: open, short, reversed, transposed, split pairs and other incorrect wiring
(Wiring condition and shielding can be confirmed using the Terminator 9690)

Cable length measurement

Measurable lengths: 2 m to 300 m (6.6 ft to 984 ft)
Measurement accuracy: ± 4 % rdg. ± 1 m (3.3 ft)
Display resolution: 0.1 m (0.3 ft)

Direction measurement

Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04

Power supply

LR6 (AA) alkaline battery ×2, 1.4 VA max., Continuous use : 50 hr (at measurement interval of 1 minute)

Dimensions and mass

85 mm (3.35 in)W × 130 mm (5.12 in)H × 33 mm (1.30 in)D, 160 g (5.6 oz) (without batteries)

Accessories

Terminator 9690 ×1, Carrying case ×1, LR6 (AA) alkaline battery ×2, Instruction manual ×1



Jual Hioki 3665-20 LAN Cable HiTester dengan harga murah, diskon dan cari produk HIOKI lainnya dari kategori Insulation Tester. Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online mudah dan aman.
