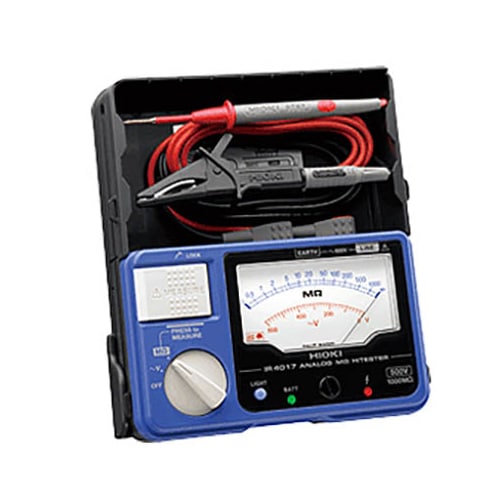

HIOKI IR4017-20 M-Ohm Hitester
Rp 3.050.000 *Inc. PPN
- Safely and accurately measure PV insulation resistance, even when the system is generating solar power!
- Dedicated PV function with fast response – measurements in just four seconds
- Five selectable ranges – 50, 125, 250, 500 and 1000V for normal insulation measurements
- 1000V DC voltage measurements
- Comparator function flags up irregular readings
- Can survive drops from a height of 1m directly onto concrete
- Backlight for use in poor lighting conditions
- Automatic electrical discharge
- Automatic AC/DC voltage detection
- Shuts itself down when left idle for 10 minutes
Related Products
Hioki IR 4053-10 Insulation Tester digital untuk sistem generasi fotovoltaik. Mengukur tahanan isolasiakurat dan aman tanpa dipengaruhi oleh tenaga surya yang dihasilkan dan mengidentifikasi nilai hanya dalam 4 detik.
Features Hioki IR 4053-10 Insulation Tester
- Safely and accurately measure PV insulation resistance, even when the system is generating solar power!
- Dedicated PV function with fast response – measurements in just four seconds
- Five selectable ranges – 50, 125, 250, 500 and 1000V for normal insulation measurements
- 1000V DC voltage measurements
- Comparator function flags up irregular readings
- Can survive drops from a height of 1m directly onto concrete
- Backlight for use in poor lighting conditions
- Automatic electrical discharge
- Automatic AC/DC voltage detection
- Shuts itself down when left idle for 10 minutes
Isi Dalam Box:
- Hioki IR4053-10 Photovoltatic Insulation Tester
- Test Lead (L9787)
- Neck Strap
- Instruction Manual
- 4 x AA Alkaline Batteries
spesifikasi Hioki IR 4053-10 Insulation Tester Insulation resistance measurement
PVΩ measurement
Rated output voltage
500 V DC
1000 V DC
Effective maximum indicated value
2000 MΩ
4000 MΩ
Measuring range/ Accuracy
0.200 to 500 MΩ / ±4% rdg.
501 to 2000 MΩ / ±8% rdg.0.200 to 1000 MΩ / ±4% rdg.
1010 to 4000 MΩ / ±8% rdg.
Other measuring range / Accuracy
0 to 0.199 MΩ / ±2% rdg. ±6 dgt.
Rated output voltage
50 V DC
125 V DC
250 V DC
500 V DC
1000 V DC
Effective maximum indicated value
100 MΩ
250 MΩ
500 MΩ
2000 MΩ
4000 MΩ
Accuracy 1st effective measuring range MΩ
±4% rdg.
0.200 to 10.00±4% rdg.
0.200 to 25.0±4% rdg.
0.200 to 50.0±4% rdg.
0.200 to 500±4% rdg.
0.200 to 1000
Lower limit resistance
0.05 MΩ
0.125 MΩ
0.25 MΩ
0.5 MΩ
1 MΩ
Overload protection
600 V AC (10 s)
600 V AC (10 s)
600 V AC (10 s)
600 V AC (10 s)
1200 V DC (10 s)
DC voltage measurement
4.2 V (0.001 V resolution) to 1000 V (1 V resolution), 4 ranges,
Accuracy: ±1.3% rdg. ±4 dgt., (Ranges in excess of 1000 V are not guaranteed for accuracy.)
AC voltage measurement
420 V (0.1 V resolution)/600 V (1 V resolution), 2 ranges, 50/60 Hz,
Accuracy: ±2.3% rdg. ±8 dgt., (Ranges in excess of 600 V are not guaranteed for accuracy.)
Display
Semi-transmissive FSTN LCD with back lighting, Backlight
Response time
Insulation resistance range: 1 second, PVΩ function: 4 seconds (based on in-house tests)
Other functions
Live circuit indicator, automatic electric discharge, automatic DC/AC detection, comparator, drop proof, auto power save
Power supply
AA alkaline batteries (LR6) ×4, Continuous operating time: Approx. 20 hours (based on in-house tests)
Dimensions and mass
159 mm (6.26 in) W × 177 mm H (6.97 in) H × 53 mm (2.09 in) D, Approx. 600 g (21.2 oz) (including batteries, excluding test lead)
