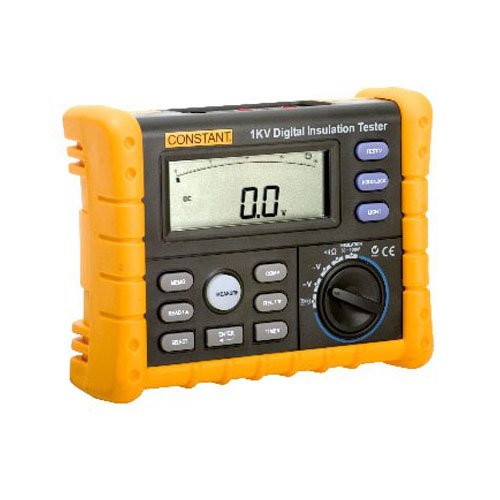

Constant 1KV Portable Insulation

Constant 1KV Portable Insulation

Spesifikasi 1 KV Digital Insulation Tester :
* OUTPUT VOLTAGE RANGE RESOLUTION TEST CURRENT ACCURACY
* 50V( 0~ 20% ) 0~ 20M© 0.01M© 1mA @ 50K ± ( 3% + 5)
* 100V( 0~ 20% ) 0~ 20M© 0.01M© 1mA @ 100K ± ( 3% + 5)  0~ 20M© 0.01M© 1mA @ 250K ± ( 3% + 5)
* 200~ 250M© 1M©  0~ 20M© 0.01M© 1mA @ 500K ± ( 3% + 5)
* 200~ 500M© 1M©  0~ 200M© 0.1M© 1mA @ 1000K ± ( 3% + 5)
* 200~ 1000M© 1M©
* 1.00~ 5.00G© 0.01G© ± ( 5% + 0.1G© )
* 5.00~ 10.00G© 0.01G© ± ( 10% + 0.2G© )
* Insulation Test Voltages : 50, 100, 250, 500, 1000V
* Insulation Source Voltages : + 20% , – 0%
* Insulation Short Circuits Test Current : 1, 8mA nominal
* Insulation Auto Discharge : discharge time Insulation Live Circuit Detection : inhibit test if terminal voltage 20V prior to initialization of test
* Insulation Maximum Capacitive load : up to 1 F load
* Storage Temperature : – 40 ~ 60 C
* Operating Temperature : 0 ~ 40 C
* Relative Humidity : 40 ~ 75% ( 40 ~ 60% when insulation test 1G )
* Size : 180 x 140 x 65nm
* Weight : 900gr
