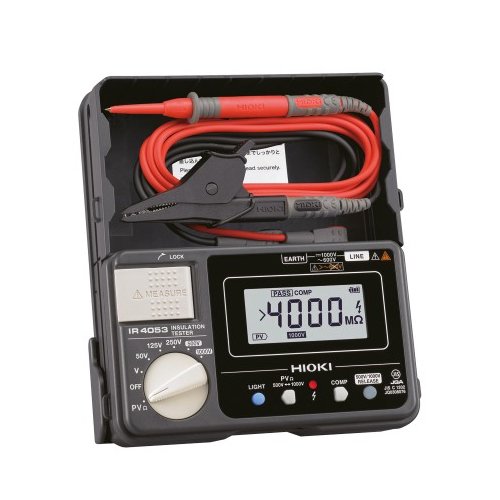

Hioki IR 4053-10 Insulation Tester


  • Safely and accurately measure PV insulation resistance, even when the system is generating solar power!
  • Dedicated PV function with fast response – measurements in just four seconds
  • Five selectable ranges – 50, 125, 250, 500 and 1000V for normal insulation measurements
  • 1000V DC voltage measurements
  • Comparator function flags up irregular readings
  • Can survive drops from a height of 1m directly onto concrete
  • Backlight for use in poor lighting conditions
  • Automatic electrical discharge
  • Automatic AC/DC voltage detection
  • Shuts itself down when left idle for 10 minutes

Hioki IR 4053-10 Insulation Tester digital untuk sistem generasi fotovoltaik. Mengukur tahanan isolasiakurat dan aman tanpa dipengaruhi oleh tenaga surya yang dihasilkan dan mengidentifikasi nilai hanya dalam 4 detik.

Features Hioki IR 4053-10 Insulation Tester

  • Safely and accurately measure PV insulation resistance, even when the system is generating solar power!
  • Dedicated PV function with fast response – measurements in just four seconds
  • Five selectable ranges – 50, 125, 250, 500 and 1000V for normal insulation measurements
  • 1000V DC voltage measurements
  • Comparator function flags up irregular readings
  • Can survive drops from a height of 1m directly onto concrete
  • Backlight for use in poor lighting conditions
  • Automatic electrical discharge
  • Automatic AC/DC voltage detection
  • Shuts itself down when left idle for 10 minutes

Isi Dalam Box:

  • Hioki IR4053-10 Photovoltatic Insulation Tester
  • Test Lead (L9787)
  • Neck Strap
  • Instruction Manual
  • 4 x AA Alkaline Batteries

spesifikasi Hioki IR 4053-10 Insulation Tester

PVΩ measurement
Rated output voltage 500 V DC 1000 V DC
Effective maximum indicated value 2000 MΩ 4000 MΩ
Measuring range/ Accuracy 0.200 to 500 MΩ / ±4% rdg.
501 to 2000 MΩ / ±8% rdg.
0.200 to 1000 MΩ / ±4% rdg.
1010 to 4000 MΩ / ±8% rdg.
Other measuring range / Accuracy 0 to 0.199 MΩ / ±2% rdg. ±6 dgt.

Insulation resistance measurement

Rated output voltage 50 V DC 125 V DC 250 V DC 500 V DC 1000 V DC
Effective maximum indicated value 100 MΩ 250 MΩ 500 MΩ 2000 MΩ 4000 MΩ
Accuracy 1st effective measuring range MΩ ±4% rdg.
0.200 to 10.00
±4% rdg.
0.200 to 25.0
±4% rdg.
0.200 to 50.0
±4% rdg.
0.200 to 500
±4% rdg.
0.200 to 1000
Lower limit resistance 0.05 MΩ 0.125 MΩ 0.25 MΩ 0.5 MΩ 1 MΩ
Overload protection 600 V AC (10 s) 600 V AC (10 s) 600 V AC (10 s) 600 V AC (10 s) 1200 V DC (10 s)
DC voltage measurement 4.2 V (0.001 V resolution) to 1000 V (1 V resolution), 4 ranges,
Accuracy: ±1.3% rdg. ±4 dgt., (Ranges in excess of 1000 V are not guaranteed for accuracy.)
AC voltage measurement 420 V (0.1 V resolution)/600 V (1 V resolution), 2 ranges, 50/60 Hz,
Accuracy: ±2.3% rdg. ±8 dgt., (Ranges in excess of 600 V are not guaranteed for accuracy.)
Display Semi-transmissive FSTN LCD with back lighting, Backlight
Response time Insulation resistance range: 1 second, PVΩ function: 4 seconds (based on in-house tests)
Other functions Live circuit indicator, automatic electric discharge, automatic DC/AC detection, comparator, drop proof, auto power save
Power supply AA alkaline batteries (LR6) ×4, Continuous operating time: Approx. 20 hours (based on in-house tests)
Dimensions and mass 159 mm (6.26 in) W × 177 mm H (6.97 in) H × 53 mm (2.09 in) D, Approx. 600 g (21.2 oz) (including batteries, excluding test lead)



Jaul Hioki IR 4053-10 Insulation Tester dengan harga murah, diskon dan cari produk HIOKI lainnya dari kategori Insulation Tester. Gratis biaya pengiriman untuk wilayah Jakarta dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Kucari.com, belanja online mudah dan aman.
