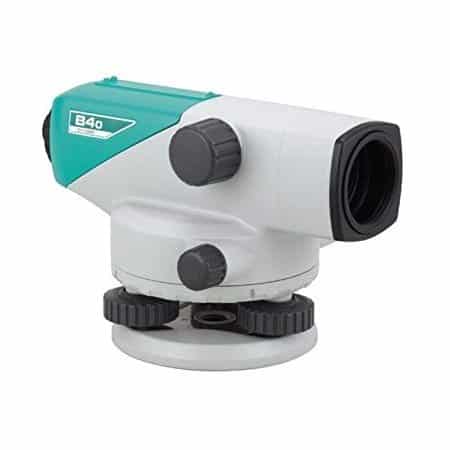

Automatic Level Sokkia B40
Rp 4.990.000 *Inc. PPN
Feature Automatic Level Sokkia B40
- Precise, Reliable Automatic Compensator
- Superior Telescope
- Quick Collimation
- Horizontal Angle Measurement
- Stadia lines on the reticle allow distance measurements
- Rapid, East Setup
- Easy to Adjust
Related Products
Automatic Level Sokkia B40 24 x Magnification Lens ditingkatkan kehandalan dalam semua kondisi lingkungan. Tubuh tangguh dan kompak lebih tertutup rapat terhadap air, kelembaban dan debu (IPx6).tingkat Sokkia B40 memberikan setup cepat, mudah penampakan, dan daya tahan unggul terhadap getaran dan shock, memastikan peningkatan produktivitas melalui babak perpanjangan waktu–waktu yang panjang.
Automatic Level Sokkia B40 24 x Magnification Lens menyediakan berbagai tingkat otomatis untuk memenuhi kebutuhan spesifik Anda. Semua model menggabungkan secara eksklusif dirancang kompensator presisi yang menggunakan sistem redaman magnetik untuk akurasi yang luar biasa dan kehandalan.
Feature Automatic Level Sokkia B40
- Precise, Reliable Automatic Compensator
- Superior Telescope
- Quick Collimation
- Horizontal Angle Measurement
- Stadia lines on the reticle allow distance measurements
- Rapid, East Setup
- Easy to Adjust
Specifications Automatic Level Sokkia B40 24 x Magnification Lens
| Model |
B40 |
| Telescope | |
| Length |
215mm (8.46in.) |
| Magnification |
24x |
| Objective aperture |
32mm (1.26in.) |
| Resolving power |
4″ |
| Field of View (at 100m/328ft.) |
1°25′ |
| Minimum focus |
0.2m (7.9in.) from end of telescope |
| Image |
Erect |
| Reticle pattern |
Cross line |
| Stadia constant |
0 |
| Stadia ratio |
100 |
| Focusing knob |
1-speed |
| Sighting aid |
Gun sight |
| Lens hood |
– |
| Accuracy (standard deviation for 1km double run leveling) | |
| Without micrometer |
2.0mm |
| With micrometer |
– |
| Compensator | |
| Type |
Pendulum compensator with magnetic damping system |
| Setting accuracy |
0.5″ |
| Working range |
±15′ |
| Circular level | |
| Sensitivity |
10′ / 2mm |
| Mirror |
Plane mirror |
| Horizontal circle | |
| Diameter |
103mm (4.1 in.) |
| Graduations |
1° / 1gon |
| General | |
| Horizontal motion drive |
Clampless, endless, double-sided knobs |
| Water resistance |
IPX6 (EC 60529:2001) |
| Operating temperature |
-20 to +50°C (-4 to +122°F) |
| Width |
130mm (5.12in.) |
| Length |
215mm (8.46in.) |
| Height |
135mm (5.31in.) |
| Weight |
1.7kg (3.7 lb.) |
