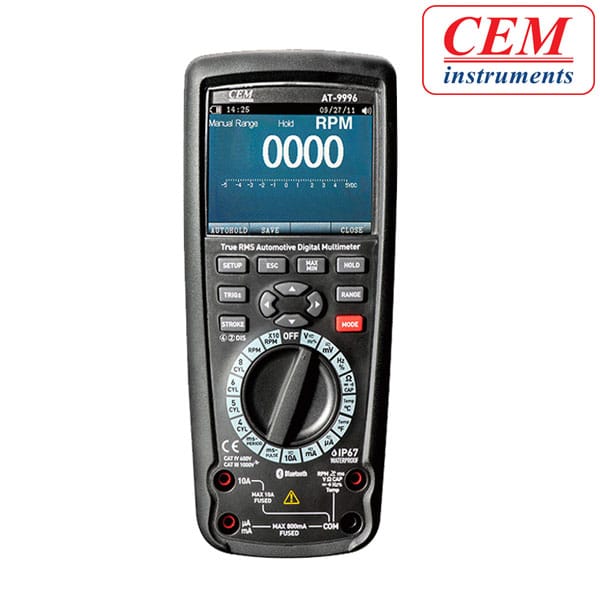

CEM AT-9996 True RMS Digital Multimeter With Oscilloscope
Rp 4.527.000
- Large 50,000 count 320 x 240 TFT color LCD display
- 10MHz/50MS/s bandwidth/Real time sample rate
- Logging function with TrendCapture for easy review of logged data
- Bluetooth PC interface for easy data transfer & accuracy calibration
- 100kHz/100kHz bandwidth (voltage/current)
Related Products
AT-9996 adalah Multimeter Digital True RMS Otomotif Profesional dengan fungsi osiloskop dan layar LCD warna TFT, menyediakan waktu pengambilan sampel konversi A/D yang cepat, akurasi tinggi, datalogging bawaan, dan fitur Trend Capture. Pengukuran RPM untuk mesin otomotif dengan 2 sampai 10 Silinder menggunakan Pick-up induktif. 14 Fungsi termasuk DCV, ACV, DCA, ACA, Resistansi, RPM (Tach), Sudut diam, Siklus tugas, Frekuensi, Suhu (ºC/ºF), Kapasitansi, Kontinuitas, dan Pemeriksaan Dioda. Baca siklus tugas pulsa dan sudut diam untuk karburator umpan balik injeksi bahan bakar elektronik, dan pengapian. Mengukur lebar pulsa Milidetik untuk menguji injektor bahan bakar, motor kontrol udara idle, dan kontrol transmisi elektronik tepat waktu.
Fitur :
Size(HxWxD) : 220mm x 96mm x 60mm Weight : 631g
Features
Large 50,000 count 320 x 240 TFT color LCD display
10MHz/50MS/s bandwidth/Real time sample rate
Logging function with TrendCapture for easy review of logged data
Bluetooth PC interface for easy data transfer & accuracy calibration
100kHz/100kHz bandwidth (voltage/current)
AC, AC+DC true-RMS measurements
Records events and trends
Saves measurements
A/D convert fast sampling time
Peak capture (records transients as fast as 250μs)
Min/Max/Average with Time stamp (records signal fluctuations)
Motor winding and low ohm (50Ω) measurement range
Low pass filter
IP Rating 67
Compatible with AC/DC clamp-on adaptor with bluetooth at mV range
Spesifikasi :
Oscilloscope Functions
Display Size
3.5″ color LCD; 320 x 240 pixels
Bandwidth
10MHz
Real time sample rate
50MS/s
Risetime
17.5ns
Glitch Capture
50ns
Vertical Sensitivity
20mV to 100V/div
Vertical Resolution
8 bits
Trigger Mode
Ferr Run, Single Shot, Edge
Trigger Source
CH1
Trigger Coupling
AC/DC
Input impedance
1MΩ/20pF
Max Input Volatge
400V(peak)
Cursor Measurement
Voltage and time
Automotive True RMS Multimeter Functions
Function
Maximum
Max, resolution
Accuracy
Voltage DC
1000V
1μV
±(0.025% + 5)
Voltage AC
1000V
1μV
±(0.4% + 40)
Current DC
10A
0.01μA
±(0.15% + 2)
Current AC
10A
0.01μA
±(0.07% + 5)
Temperature
-50ºC to 1350ºC
0.1ºC
±(1.0% + 1ºC)
Resistance
50MΩ
0.1Ω
±(0.05% + 2)
Capacitance
10mF
0.001nS
±(1.0% + 5)
Frequency
10MHz
0.01Hz
±(0.005% + 1)
RPM(Tach)
600 ~ 4000RPM;
600 ~ 12000RPM(x 10RPM)±(2.5%+2d)
Dwell Angle
1CYL, 2CYL, 3CYL, 4CYL, 5CYL,
6CYL, 8CYL, 10CYL, 12CYL±(2.5%+2d)
Duty Cycle
0.1~99.9%
±(1.5%+2d)
Period
0.1~20mS
±(3.0%+5d)
Pulse Width
0.1~10mS
±(3.0%+5d)
Diode and Continuity
Yes
PC Interface
Bluetooth
Power Supply
6 hours Li-ion rechargeable battery;AC Adaptor/charger
Accessories:
Test leads, Li-ion batteries, Type K temperature probe, Software, gift box with carrying case.
Belanja online CEM AT – 9996 hanya di Kucari dengan kualitas terbaik, harga murah bersaing, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
