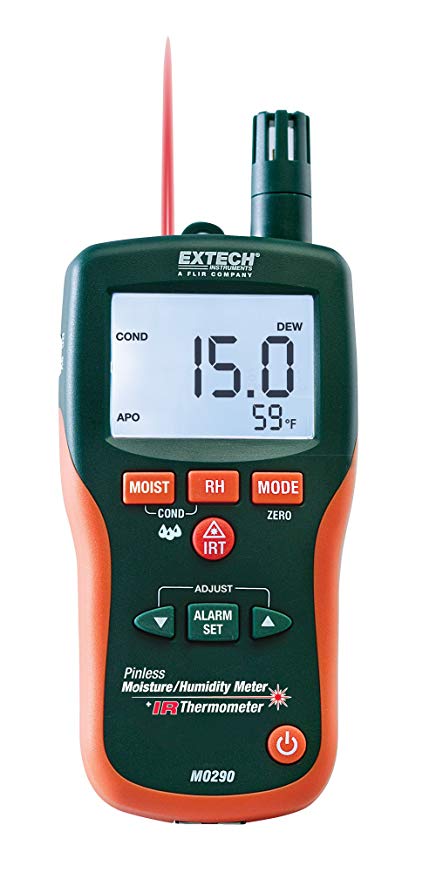

EXTECH MO290 Pinless Moisture Psychrometer + IR

EXTECH MO290 Pinless Moisture Psychrometer + IR can provide the perfect solution to ensuring that building materials are safe to use. The device can not only ensure that wood is not damaged by moisture; the pinless moisture tester is also capable of measuring humidity, air temperature with its built in probe and can also measures temperature using infrared (IR) measurements. The device is particularly useful in construction but is also used in other industries.

The device allows measurement of the moisture levels within wood and other building materials without causing any surface damage, and can measure up to 19mm below the surface. This non-invasive measurement is able to detect moisture at a depth of 0.75″ and the Extech MO290 also ships as standard with a pin moisture probe that allows users to gain moisture measurements below the surface of the material.

Built-in IR thermometer allows measurements of surface temperature to be made and utilises distance to spot ratio of 8:1 and 0.95 fixed emissivity. The Extech MO290 also has a built-in humidity and temperature probe, which is able to measure ait temperature, relative humidity, grains per pound, dew point and vapour pressure.

This device can even let you programme high and low alarms for different measurements.

Extech MO290 Pinless Moisture Psychrometer + IR Key Features

Measure Humidity, Air Temperature (with built-in probe) plus non-contact InfraRed Temperature
Pinless moisture sensor allows to monitor moisture in wood and other building materials with no surface damage
Remote pin-type probe (MO290-P) for contact moisture readings (3ft/0.9m cable length)
Select from multiple wood types and measurement ranges
Easy to read, large dual display with backlit feature
Simultaneously displays % moisture of wood or material being tested and Air Temperature, IR Temperature, or Humidity
Pinless measurement depth to 0.75″ (19mm) below the surface
Non-Contact InfraRed Thermometer with 8:1 distance to spot ratio and 0.95 fixed emissivity
Built-in Humidity/Temperature probe measures Relative Humidity, Air Temperature plus Grains Per Pound (GPP), Dew Point (DP), and Vapor Pressure
Programmable high/low Moisture and Humidity alarms
Automatic calculation of differential Temperature (IR – DP) to determine condensation point
Min/Max and Data Hold, Auto Power Off

Specifications :

Wood Moisture Range     0 to 99.9%
Other Building Materials     0 to 99.9 ( Relative)
Accuracy     Relative only
Operating Temperature     MO290: 14 to 122° F ( -10 to 50° C)
MO295: 40 to 110° F ( 4 to 43° C)
Power Supply     9V battery
Dimensions     6.5×2.8×1.5” ( 165x70x38)
Sensor Type     Non-Penetrating
Weight     7.4oz ( 210g)
Max Resolution     0.1, 0.1° F/ ° C
Max. Measurement depth     Pinless depth: up to 0.75 ” ( 19mm)
Display     3-digit primary display, 4-digit secondary display
Memory     Store/ Recall 20 data readings

Full List of Products Included
Extech MO290 Pinless Moisture Psychrometer
Pin Moisture Probe (with Cable)
9V Battery
Case
