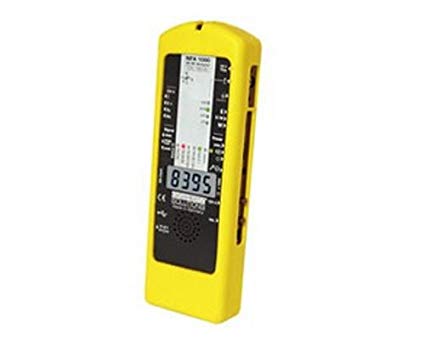

GIGAHERTZ NFA1000 Portable Digital Gauss Meter

GIGAHERTZ NFA1000 Portable Digital Gauss Metercalibration procedures are followed using only high end, calibrated measurement instruments. This guarantees that every NFA1000 meter made by Gigahertz has been individually calibrated to a traceable standard. An official 3rd Party Accredited Calibration Certification plus data is available upon request. Please contact us for the current rates.

Features :

The first choice of EMR professionals throughout the world
3D potential-free electric field measurement
3D measurement of the magnetic field
Ability for extensive long-term data recordings
Records simultaneously on 4 recording channels ( CH1-3) for desired 3D measurement and optional channel 4
Supplied with revolutionary PC software ( NFASoft) for facilitated interpretation and documentation of the acquired data
Eliminates the need for X-Y-Z RMS calculations Ability to measure in single axis mode when necessary
Channel for recording Radio Frequency signals from the HFE59B RF Analyzer
Integrated Body Voltage Meter
USB Connection to PC
Standard 4 GB SD memory card supplied ( upgradeable)
High frequency transient analysis for ” Dirty Electricity”
Separate true RMS recordings of power line frequencies and harmonics ( 16.6 Hz | 50/ 60 Hz | 100/ 120 Hz plus even harmonics | 150/ 180 Hz plus odd harmonics | other frequencies 2kHz)
Real time voice recordings, or audio input, embedded into the data screen for playback during data evaluation
A ‘ no tamper’ lock feature allows for the device to be left securely on site while data logging is operational
Customized Geiger Counter/ Audio alarm: Allows for a personalized volume and high exposure alarm
Broadband peak measurements ( genuine peak of a wave)
Li-Ion rechargeable batteries for up to 48 hours of continuous recordings
External power supply / charger included
All Gigahertz Solutions EMF Meters are backed by a 2 year manufacturer’ s warranty

Specifications :

Frequency Response: Flat Frequency Response from 5 Hz to 1 MHz at -1 db
Electric Field Sensor: 3D – X Y Z
Magnetic Field Sensor: 3D – X Y Z
Signal Rating: RMS, RMS Hold, Peak
Magnetic Field Measuring Range: 1 – 19, 990 nanoTesla ( 0.01 – 199.9 milliGauss)
Electric Field Measuring Range: 0.1 – 199 Volts/ meter – V/ m
Body Voltage: 1 – 19, 999 mV
Resolution Magnetic Field: Finest Reading – 1 nT ( 0.01 mG)
Resolution Electric Field: Finest Reading – Fine Range – 0.1 V/ m
Accuracy / Basic Tolerance: Compensated, better than -2 dB
Dimensions: 78 x 230 x 37 mm ( W x L x H) approx 3 x 9 x 1.5 inches
Weight of Meter: 600 g
Case Material: Plastic case with protective silicone

Includes :

NFA1000 EMF Meter Users Guide
2 Year Warranty Certificate
Standard Factory Calibration Certificate
Plastic Carrying Case
Grounding Cable – 17 foot ( 5.18 meters) – for AC electric field measurements
Grounding Clip – For direct connection to water pipe
Body Voltage Brass Hand Probe and cable
Rechargeable Battery Pack with charger/ power supply
4 GB High Speed SD Memory Card
USB SD Memory Card Reader
USB Interface Cable
Interface Cable ( 2.5 mm to 2.5 mm) – For connection to HFE59B
Silicone protective cover – yellow
