Graigar GR650 Ultrasonic Flaw Detector Defectoscope

GR650 Digital Ultrasonic Flaw Detector Automated calibration of transducer Zero-point

Features :

•  Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB)
•  Automated switch three staff gauge (Depth d, level p, distance s)
•  Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
•  Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated
•  6dB DAC functions
•  Standards of test for DAC is saved
•  500 independence setup, any criterion can be input freely, we can work in the scene without test block
•  Big memory of 1000 A graph
•  Automated gain and gain scan
•  Peak Hold and Peak Memory
•  B scan
•  AWS D1.1
•  Automated make video of test process and play; use USB flash disk, the length of video is unlimited
•  Powerful PC software and reports can be export to excel
•  Li battery, continue working time up to 10 hours
•  The embedded software can be online updated

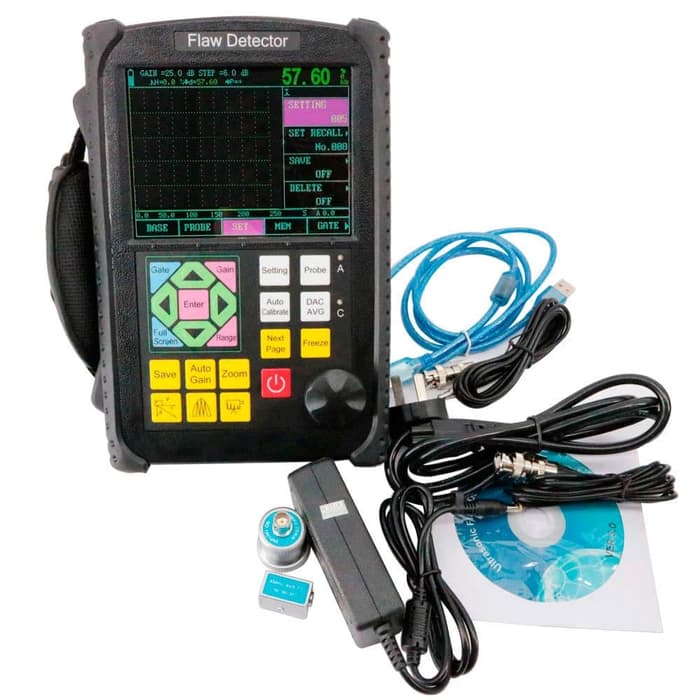

Each unit includes with :

1. GR650 Flaw Detector
2. Straight Probe 10mm 4MHz
3. Angle Probe 8×9 60° 4MHz
4. Probe Connecting Cable: 2 PCs
5. 9V Power Adaptor & Cable
6. PC Software
7. Communication Cable
8. Calibration Certificate
9. User Manual
10. Instrument Hard Case
