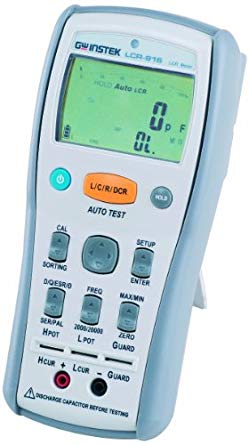

GW Instek LCR916 Handheld LCR Meter

GW Instek LCR916 Handheld LCR Meter is a smart, convenient and fully-functional dual display handheld LCR meter. The test frequency extends as high as 100 kHz/10kHz, providing greater flexibility to test a wider range of components.The LCR-916/915/914 uses a dual 20,000 /2,000 count display.

The 20,000 count display is used for displaying the primary parameters such as capacitance, inductance and resistance as well as DC resistance measurement, and a 2,000 count display is for secondary parameters such as Q, D, ESR and RP measurement. Secondary measurements can also be combined with the primary measurement while the primary measurement is still being taken.

LCR-916/915/914 provides two measurement methods, 2 wire and 5 wire measurement. The LCR-916/915/914 also come with a host of various standard or optional accessories to assist the testing a number of different component types. The meters also include handy functions such as data hold, tolerance sorting, zero mode and Min/Max (for LCR-916 only).The meter’s USB interface can be used to log data to a PC using the LCR900 software and provide the DC 5V needed to power the meter.

With the LCR-916/915/914, you can perform quick and basic LCR measurements with precision at an affordable price

Features :

20,000/2,000 Counts Dual Display
Test Frequency : 100/120Hz/1/10/100kHz
Auto LCR Mode for DUT Measuring
0.2% Basic Accuracy
Measurement Parameter : L,C,R,D,Q,ESR,θ,DCR
Parallel/Series Testing Mode
Sorting Mode for Quality Control
2Wire or 5Wire Measurement Available
Data Hold and Zero Mode Supported
Max/Min
Auto Range, Auto Backlit
Low Battery Indication
Auto Power off
Data Collection/AC power operation

What’s in the Box :

(1) User Manual
(1) Shorting Cube
(1) Alligator Clip
(1) Hanging Kit
(4) AA Batteries
(1) SMD Test Probe
(1) AC Adapter
(1) USB Cable
(1) CD (PC Software)
