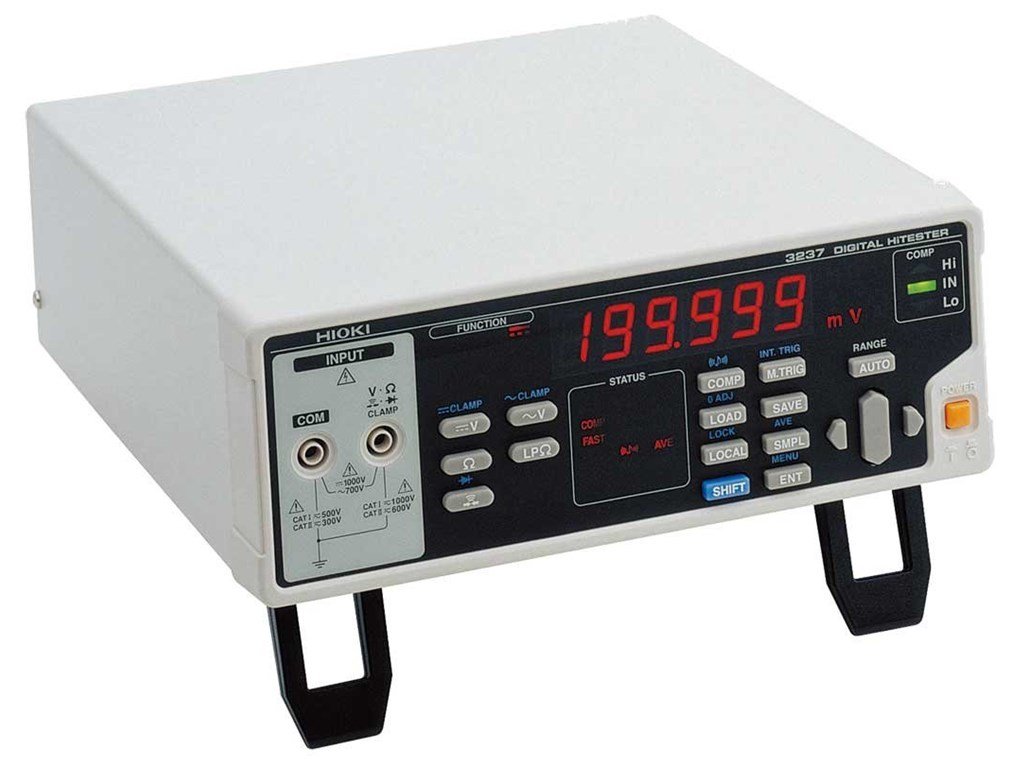

HIOKI 3237 Digital HiTester Bench Multimeter
Login lihat harga
- DC Voltage: 199.999mV to 1000.00V, 5 ranges, Basic accuracy: ±0.025% rdg. ±2 dgt.
- AC Voltage: 1999.99mV to 750.00V, 4ranges, Frequency characteristics: 10Hz to 30kHz, Basic. accuracy: ±0.2% rdg. ±100 dgt., (True RMS rectified, Crest
- factor addition error: 1 < C.F. ≤ 2: +200
dgt.)
Related Products
HIOKI 3237 Digital HiTester Bench Multimeter
Features :
Samples at rates of up to 300 samples/sec. (3.3 ms/sample)
Comparator function provides high-speed pass/fail evaluation
Equipped with external input and output for sequence control
Usefull Save/Load function helps work go faster
Low power resistance measurement function prevents sample deterioration
True RMS value measurement
Interface supports full remote operation
DC V basic accuracy: ±0.025% rdg.±2dgt.
The 3237, 3238, and 3239 Digital HiTesters can perform 3.3 ms high-speed sampling, and come equipped with a comparator, external input and output, and an RS-232C interface. These three highperformance DMMs can be used not only in laboratories, but in production lines that require the minimal tact time. The 3237 is the basic model, and is equipped with the basic necessary functions.
Specifications :
DC Voltage: 199.999mV to 1000.00V, 5 ranges, Basic accuracy: ±0.025% rdg. ±2 dgt.
AC Voltage: 1999.99mV to 750.00V, 4ranges, Frequency characteristics: 10Hz to 30kHz, Basic. accuracy: ±0.2% rdg. ±100 dgt., (True RMS rectified, Crest factor addition error: 1 < C.F. ≤ 2: +200
dgt.)
Resistance (2-terminals): 199.999Ω – 100.000MΩ, 7ranges, Basic accuracy: ±0.05% rdg. ±2 dgt.
Low-power Resistance (2-terminals): 1999.99Ω – 1999.99kΩ, 4ranges, Basic accuracy: ±0.05% rdg. ±6 dgt.
Continuity Test: Beep sound 50.00Ω or less at 1999.99Ω range, Testing current 100μA
Diode Test: With 1999.99 mV range, Testing current 1 mA
Other functions: Comparator, Save/Load of settings, Printer output, Current measurement with clamp-on probes and scaling, External control I/O
Display: Digital LED, max. 199999 digits
Sampling rate: 300 times/s (Fast), 8 to 9 times/s (Medium), 1 time/s (Slow)
Power supply: 100/ 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz
Dimensions, mass: 215mm (8.46in)W x 80mm (3.15in)H x 265mm (10.43in)D, 2.6kg (91.7oz)
Supplied accessories: TEST LEAD L9170-10×1, Instruction Manualx1, Power cordx1, Spare fuse each 1
Includes :
9170 Test Lead
Power Cord
Multimeter atau multitester adalah alat pengukur listrik yang sering dikenal sebagai VOM (Volt-Ohm meter) yang dapat mengukur tegangan (voltmeter), hambatan (ohm-meter), maupun arus (amperemeter). Ada dua kategori multimeter: multimeter digital atau DMM (digital multi-meter)(untuk yang baru dan lebih akurat hasil pengukurannya), dan multimeter analog. Masing-masing kategori dapat mengukur listrik AC, maupun listrik DC. Sebuah multimeter merupakan perangkat genggam yang berguna untuk menemukan kesalahan dan pekerjaan lapangan, maupun perangkat yang dapat mengukur dengan derajat ketepatan yang sangat tinggi.
