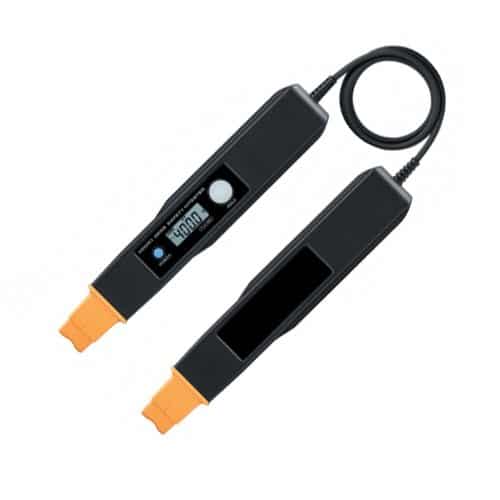

Hioki 3258 safety Hitester
Rp 6.750.000 *Inc. PPN
- The world’s first non-metallic contact voltage meter!
- Contains no exposed metal parts, with everything including the measurement probes protected by insulating resin
- Test for voltage using the traditional method or over insulated (covered, not shielded) conductors
- Simply press the non-metallic tips onto wiring or any object that sustains an electrical current
- Safe and accurate measurement
- User safety vastly improved over other probes, which contain metal parts
- Compatible with 100, 200 and 400V power lines
- Ideal for a wide range of applications in electrical equipment maintenance and installation work
- Also ideal for metallic busbars and terminals
- Optimized for 400 V AC circuits
Related Products
Hioki 3258 safety Hitester adalah garis tegangan tester yang mempekerjakan kopling metode kapasitansi pembatalan untuk mengukur tegangan di sirkuit AC tanpa memerlukan kontak logam dengan logam. Tegangan dapat diukur dengan aman di hampir setiap lokasi, di kedua konduktor logam terisolasi atau terkena.
Hioki memimpin industri dalam tes kontak non-logam dan teknologi pengukuran yang mempromosikankeselamatan di tempat kerja
features
- The world’s first non-metallic contact voltage meter!
- Contains no exposed metal parts, with everything including the measurement probes protected by insulating resin
- Test for voltage using the traditional method or over insulated (covered, not shielded) conductors
- Simply press the non-metallic tips onto wiring or any object that sustains an electrical current
- Safe and accurate measurement
- User safety vastly improved over other probes, which contain metal parts
- Compatible with 100, 200 and 400V power lines
- Ideal for a wide range of applications in electrical equipment maintenance and installation work
- Also ideal for metallic busbars and terminals
- Optimized for 400 V AC circuits
Specifications
Measurement parameter
AC voltage (AC potential bridge)
Objects of measurement
Insulated conductors (IV or CV equivalent, min. 100 mm² x-section), metal conductors Note: Not usable on shielded conductors
Measurement range
420.0V/ 600V AC (Auto)
Measurement values
True RMS
Max. rated voltage to earth
600V AC rms
Influence of adjacent wiring
±5% rdg. or less
Temperature characteristics
0.05 % rdg./ °C
Display
Digital LCD, max. 4200 digit (zero suppress at 10 digits or less)
Display refresh rate
Approx. once every 0.6 seconds
Display response
2.4 s or less
Functions
Data hold function, auto-power off, low battery warning
Power supply
LR6 (AA) alkaline battery ×6, Continuous use: 14 hr (Power ON, no measurement), or 1-minute measurements for 1000 times, or 5-minute measurements for 200 times
Dimensions and mass
51mm (2.01in) W × 275mm (10.83in) H × 37.5mm (1.48in) D (one probe), 670g (23.6oz)
Accessories
Instruction manual ×1, LR6 (AA) alkaline battery ×6, Soft carrying case ×1
