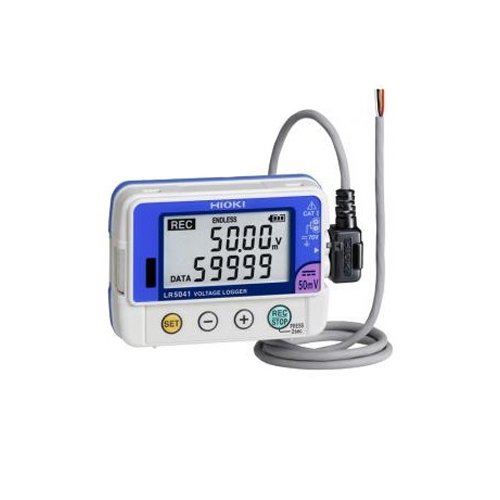

Hioki LR5041 Voltage Logger

Hioki LR5041 Voltage Logge  termasuk fitur dan fungsi seperti 7 kali kapasitas rekaman mantan model,data impor selama perekaman, pengukuran kontinyu bahkan selama penggantian baterai, dan software PC yang intuitif. Fleksibel dan mudah digunakan di lokasi tunggal dan ganda.

Hioki LR5041 Voltage Logger baru kompak dan ideal untuk aplikasi yang membutuhkan sederhana set-up tapi jangka panjang, kemampuan merekam handal.

features Hioki LR5041 Voltage Logger

• For recording instrumentation signals and measuring analog outputs from sensors and other devices
• Stores 60,000 data points per channel
• Long-term recording capability exceeds that of previous models
• Easy-to-see dual display
• IP54 Splash-proof rating
• Data transfer during recording
• Continuous measurement even during battery replacement
• Backup function
• Intuitive PC software
• Simple set-up
• Long-term, reliable recording capabilities

Specifications Hioki LR5041 Voltage Logger

Measurement items: DC voltage 1ch

Measurement range: -50.00 to 50.00 mV

Accuracy: 0.5 %rdg. 5 dgt.

Storage capacity: Instantaneous value mode: 60,000 data, Statistical value mode: 15,000 data

Recording interval: 1 to 30 sec., 1 to 60 min., 15 selections

Recording modes
Instantaneous recording: at every recording interval
Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval

Recording methods
One-time recording: Stop recording when the memory capacity is full
Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
Start: Logger button operation or scheduled time
Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)

Other functions
Pre-heat function (requires external power supply during use of function), Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low; guarantees approx. 30 sec. of recording operation and clock while battery is replaced

Waterproof and dust-proof
IP54 (EN60529) (with connection cable connected, but not including cable tip)

Interfaces
Infrared optical communications with LR5091, LR5092-20

Power supply
LR6 (AA) Alkaline battery 1, Battery life: Approx. 2 years (Instantaneous recording, with 1-minute interval and auto power saving, at 20 C), Approx. 2 months (Instantaneous recording, with 1-second interval at 20 C)

Dimensions and mass
79 mm (3.11 in) W 57 mm (2.246 in) H 28 mm (1.10 in) D, 105 g (3.7 oz)

Accessories
LR6 (AA) Alkaline battery (built-in internal) 1, Connection cable LR9802 1, Instruction manual 1, Operation guide 1, Kickstand 1

Garansi Distributor Resmi
1 Tahun
