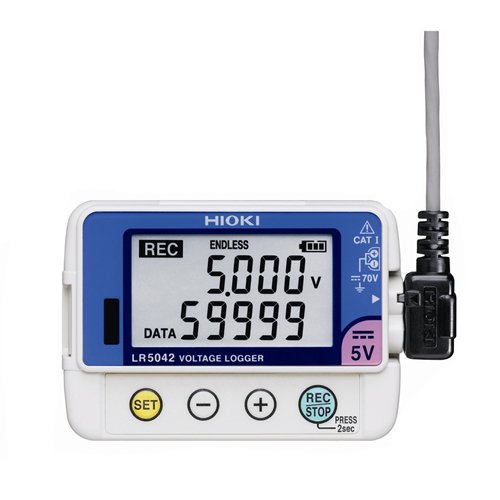

Hioki LR5042 DC Voltage Logger
Rp 2.750.000 *Inc. PPN
- This logger is simple to set up and install
- Easy-to-see dual display
- Transfer data to PC even during recording
- Batteries last up to 2 years and can be replaced while recording
- Record 60,000 data points per channel
- Record maximum, minimum and average readings for every recorderd period
- Different mounting options available
Related Products
Hioki LR5042 DC Voltage Logger kompak yang ideal untuk merekam variabel pengukuran dalam waktu lama. Its proses sederhana untuk mengumpulkan data vie unit inframerah dan kemudian men-downloaddata ke PC / laptop. Transfer data dan baterai perubahan dapat berlangsung sementara unit merekam, tidak ada data yang perlu pernah hilang. Data dan grafik dapat EAS dilihat melalui perangkat lunak yang disediakan dengan Hioki LR5091 Komunikasi Adapter atau Hioki LR5092-20 Data Collector (lihat aksesoris).
Features Hioki LR5042 DC Voltage Logger
- This logger is simple to set up and install
- Easy-to-see dual display
- Transfer data to PC even during recording
- Batteries last up to 2 years and can be replaced while recording
- Record 60,000 data points per channel
- Record maximum, minimum and average readings for every recorderd period
- Different mounting options available
specifications Hioki LR5042 DC Voltage Logger
| Features | Record instrumentation signals and measure analog output from sensors and other devices |
| Function | Preheat function (When using preheat function, a separate external power supply is required.) |
| Measurement items | DC voltage 1ch |
| Measurement range | LR5041: -50.00mV to 50.00mV LR5042: -5.000V to 5.000V LR5043: -50.00V to 50.00V |
| Basic Accuracy | ±0.5%rdg. ±5dgt. (@23°C±5°C) |
| Waterproof and dustproof | IP54 (splash-proof construction) |
| Operating temperature and humidity | -20°C(-4°F) to 70°C(158°F) , 80%rh or less (non-condensating) |
| Dimensions & Mass | Approx. 79mm(3.11in)W×57mm(2.24in) H×28mm(1.10in)D, 105g(3.7oz) |
| Power supply | LR6 (AA) Alkaline battery 1.5V×1 |
| Battery life | Case 1 : Approx. 2 years (1min. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C) Case 2: Approx. 2 months (1sec. recording interval, power-saving mode, Instantaneous recording, environmental temp.20°C) |
| Accessories | CONNECTION CABLE LR9802×1, Kickstand LR6 (AA) Alkaline battery 1.5V×1, Instruction manual ×1, Operation manual×1 |
