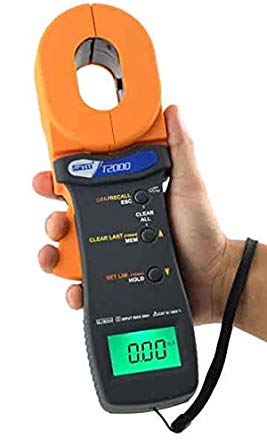

HT Instruments T2000 Earth Ground Clamp Meter

HT Instruments T2000 Earth Ground Clamp Meter is designed for the resistance measurement on earth rods with ground loop method without the disconnecting certain parts of the installation under test.

This type of measurement can be used for evaluation of a single rods’ resistance within an earth installation assuming they do not affect each other.

The inner part of the instrument is made of 2 jaws one for current and one for voltage. The voltage jaw generates a potential (E) on the loop during resistance measurement. A current (I) is consequently generated on the loop and is measured by the current jaws. Based on the value of parameters E and I the instrument displays the resistance value R calculated as their ratio.

T2000 clamp also performs AC current up to 20A and leakage current with 0.05mA resolution and the setting of alarm thresholds on measurements is possible. The instrument is compliant with IEC/EN61010-1, CAT III 150V and is ideal for simple measurements both in domestic and industrial environments.

Features :

Resistance measurement on earth probes by means of ground loop method
Direct measurement on earth probes without any cable breaking
Measurement of leakage current on earth installations
Setting of alarm thresholds on measurements
Storage of measurement results
Detection of current noise on measurements
Data HOLD function
Backlight
Auto Power OFF

What’s in the Box :

(1) Resistive test loop
(1) Carrying case
(1) Batteries
(1) User manual
