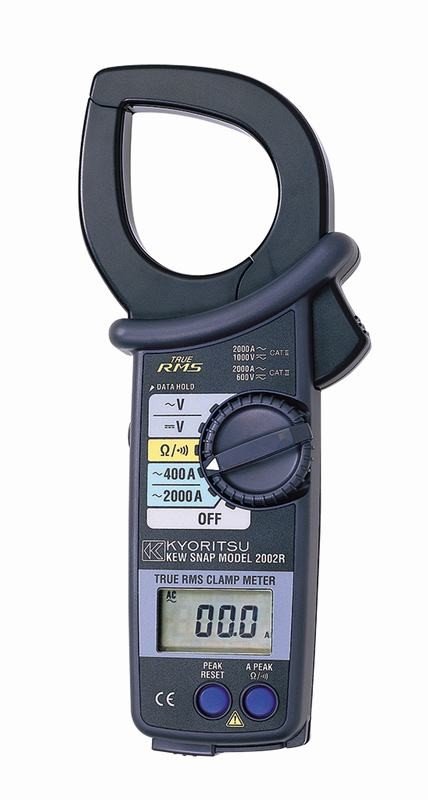

KYORITSU 2002R 2000A AC Clamp Meter

KYORITSU 2002R 2000A AC Clamp Meter is a true RMS sensing, manual- and auto-ranging multimeter for measuring current, voltage, and resistance in electrical testing applications. It has a clamp that measures AC (alternating current) to 2,000A (amperes). The clamp has two jaws that can close around an electrical conductor up to 55mm (2.16 inches) in diameter to measure current without touching or interrupting the circuit. A set of test leads is included for measuring AC voltage to 750V, DC voltage to 600V, and resistance to 400kΩ (kilohms).

Description :

The meter has a rotary switch to select the property to measure, and a 4,000-count LCD. The peak hold function, using a 10ms (millisecond) sampling time, captures the highest reading of the inrush current at the startup of motors and other inductive loads. To aid documentation of readings and capture readings in tight spaces, the data hold function keeps the most recent reading on the display after disconnecting from the circuit. A continuity buzzer confirms that the circuit conducts electricity. For long-term monitoring of current, the meter comes with an output plug for attaching to a recording device (sold separately). The unit operates on two 1.5V AA batteries, and turns off automatically after 10 minutes of non-use to conserve battery life. It has a low-battery indicator that signals when the battery needs to be replaced.

This true RMS (root mean square) sensing meter provides accurate readings when measuring linear or non-linear loads, regardless of the waveform. It is manual-ranging for current to allow operator control of measurements, and auto-ranging for voltage and resistance, so it automatically selects the appropriate operating range. Accuracy and resolution specifications vary according to the range being measured. The meter meets IEC (International Electrotechnical Commission) safety standards 61010-1, 61010-031, and 61010-2-032, and is rated for CAT (category) III installations to 600V, which covers equipment in fixed installations, such as switches in the fixed installation and some industrial equipment that is permanently connected to the fixed installation, and CAT II installations to 1,000V for voltage measurement, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory appliances. It has CE (European Conformity) marking. The unit comes with a carrying case.

Specifications :

Maximum AC (alternating current) input    2,000A
Maximum AC voltage input    750V
Maximum DC (direct current) voltage input    1,000V
Maximum resistance detected    400kΩ
Installation rating    CAT III, 600V; CAT II, 1,000V
Standards met    IEC safety standards 61010-1, 61010-031, and 61010-2-032; CE marking
Power supply    (2) 1.5V AA batteries
Weight    470g/16.6oz.
Dimensions (H x W x D)    247 x 105 x 49mm/9.72 x 4.13 x 1.93 inches
