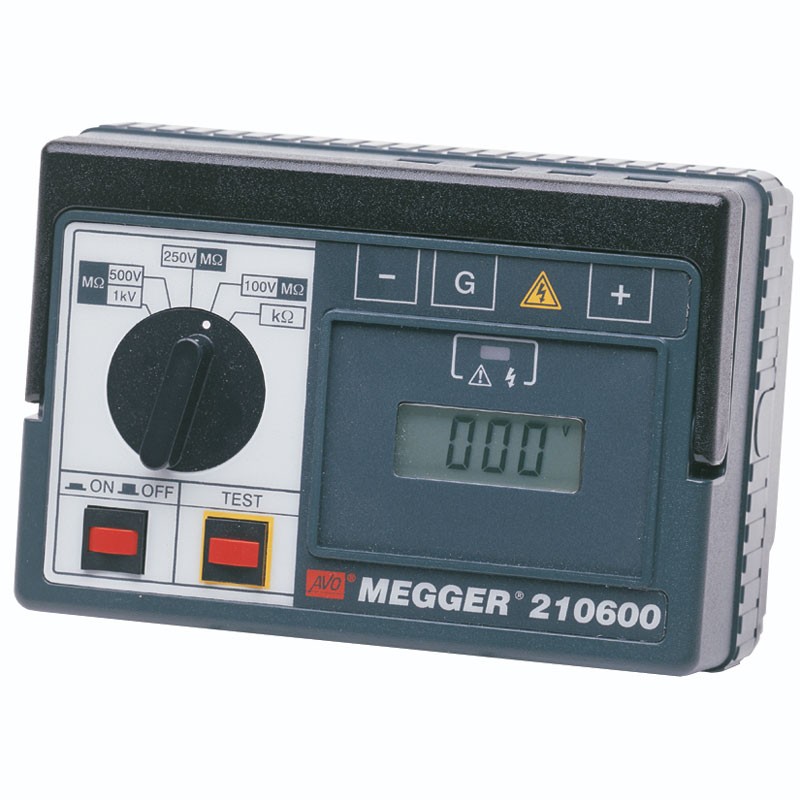

MEGGER 210600 Extended Range Insulation Tester

Megger 210600 Extended Range Insulation Resistance Testers are ideal instruments when high ranges are needed for measuring insulation resistance. It provides excellent test voltage regulation and an external guard terminal to eliminate surface leakage current from the measurement. The instrument is all electronic; it generates a regulated dc high voltage and use low-zero-drift, high-accuracy circuits, with high current sensitivity. Designed for portability, each is enclosed in a molded, impact-resistance, flame-retardant case.
The instrument is protected for connection to power distribution systems up to 300 V Line-Ground and 500 V Line-Line for Installation Category III. This relates to transient overvoltage likely to be found in fixed installation wiring.

Features :

Test Voltages of 100/250/500/1000 VDC
Insulation resistance measurements up to 1999 MΩ
0 to 600 VAC Measuring Range
Guard terminal to eliminate surface leakage current
Battery Operated
Autoranging
Large easy-to-read 3Ω LCD display

What’s In The Box :

(1) 217720 Carrying Case
(1) 210949 Test record cards (universal)
(1) EV6172-373 Instruction Manual
