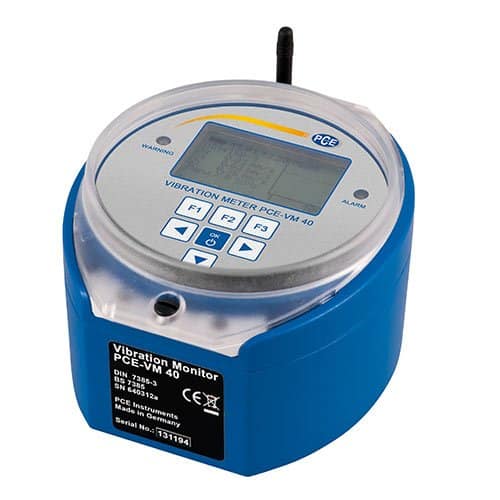

PCE VM40B Vibration Analyzer

PCE VM40B Vibration Analyzer was designed for vibration and shock metering on buildings, bridges, towers, and other artificial structures. The Accelerometer measures vibrations in accordance to DIN 4150-3, BS 7385 and SN 640312A standards. With its internal memory for up to 100,000 readings, the PCE-VM 40B Accelerometer can determine the effects of construction sites, traffic, or industrial processing on buildings over a long period of time. You can choose between time-based and event-based recording, as well as between recording of short-time and long-time vibrations. It is also possible to set threshold levels which trigger an alarm signal when exceeded. With the built-in GSM module, the device can send you SMS notifications once the alarm is triggered.

Description :

Accelerometer is very easy to use and can be configured for different applications in no time. The measured data can easily be viewed on the integrated display of the device. Here you can see the vibration speed in all 3 directions. The Accelerometer has an integrated NiMH battery which makes it suited for mobile use on-site. A mains adaptor for stationary use is also included in delivery.

Features :

– triaxial acceleration meter
– in accordance with BS 7385 standard
– integrated NiMH battery
– FFT analysis
– SMS alarm notifications via GSM
– internal memory for up to 100,000 readings
– mains adaptor included in delivery
– easy to use
– threshold function

Delivery contents
1 x PCE-VM 40B Vibration Meter
1 x USB cable VM2x-USB
1 x mains adaptor VM40-CH
1 x instruction manual
