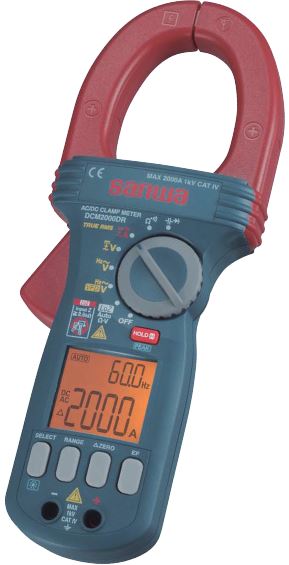

SANWA DCM2000DR Digital AC/DC True RMS Clamp Meter

SANWA DCM2000DR Digital AC/DC True RMS Clamp Meter

Description :

Dual display shows voltage/current and its frequency
True RMS
EF (Electric Field) sensing
VFD (Variable Frequency Drive) frequency measurement
Low input impedance voltage measurement capable of attenuating the effects of ghost voltage
Data hold, Range hold
Relative value
Peak hold (5msec.)
Auto Power Save (30min.) (cancelable)
Sampling rate : approx. 5 times / sec

Spesifications :

Sanwa DCM 2000 DR Clamp Meter
ACA
Measuring Range: 200/2000A
Best Accuracy: (2.0%+5)
Resolution: 0.1A
DCA
Measuring Range: 200/2000A
Best Accuracy: (2.0%+5)
Resolution: 0.1A
ACV
Measuring Range: 6/60/600/1000V
Best Accuracy: (1.2%+5)
Resolution: 0.001V
DCV
Measuring Range: 6/60/600/1000V
Best Accuracy: (1.2%+5)
Resolution: 0.1A
Resistance
Measuring Range: 600/6k/60k/600k/6M/40M
Best Accuracy: (0.5%+5)
Resolution: 0.1
Frequency
Measuring Range: 10~1999Hz
Best Accuracy: (0.1%+5)
Resolution: 0.01Hz
Continuity: Buzzer sounds at between 10 and 200 open voltage: approx. 0.5V
Diode test: Open Voltage: approx. 1.8V
Bandwidth: 50~400Hz
Display: 6000
Clamp diameter/Conductor size: 55mm/20x66mm
Size/Mass: H264xW97xD43/approx.640g
