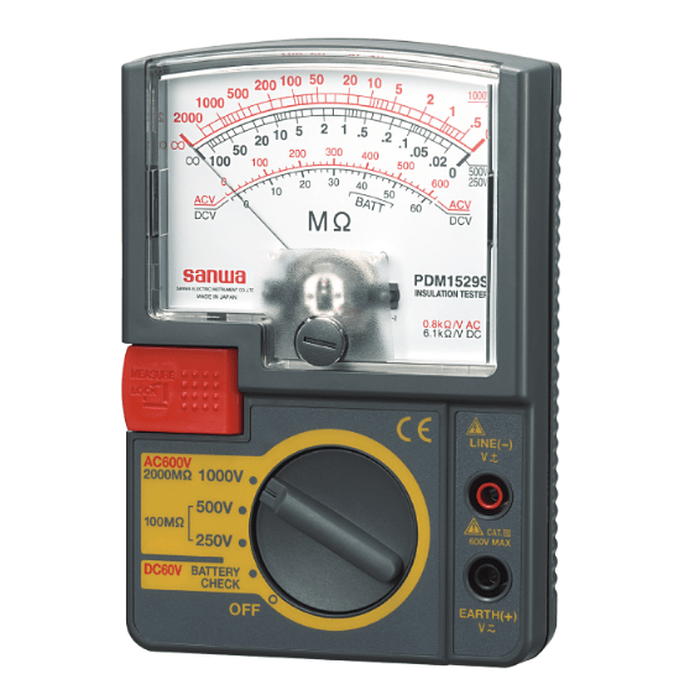

Sanwa PDM1529S Analog Insulation Tester

APPLICATIONS AND FEATURES
This instrument is a DC insulation resistance tester to measure the insulation resistance of electric lines and electric equipment.

– Test voltage DC1000V/500V/250V
– Easy viewing and readable scale graduations
– One-shot or continuous measurement push switch
– DCV measurement range(DC60V)
– Auto discharge function
– Inner battery check range

SPECIFICATIONS :

•  Meter type: Internal magnet, Taut-band meter(48μA)
•  AC rectifier form: Half-wave rectification(Mean value indication rms value converted)
•  Accuracy assurance temperature /humidity: 23±5°C 75%RH or below No condensation
•  Operating temperature / humidity: 0°C～43°C 80%RH or below No condensation
•  Storage temperature / humidity: -10°C～50°C 70%RH or below No condensation
•  Operating environment: Altitude 2000m or less, environmental pollution degree II
•  Power consumption: Approx. 2.6W(At 1000V/2000MΩ range)
•  Battery consumption: Checked by BATTERY CHECK range
•  Safety standards: IEC61010-1 CAT.III 600V
•  IP rate: IP20

EACH UNIT INCLUDES WITH :

1. Test lead(TL-508Sa)
2. Carrying case(C-08S)
3. Instruction manual
