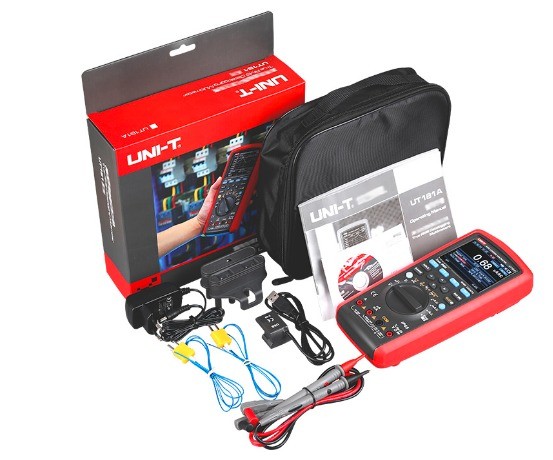

UNI-T UT181A Multimeter True RMS Datalogging
Rp 9.250.000 *Inc. PPN
UT181A adalah multimeter digital dengan perekaman tren, true RMS, filter low pass, konduktansi nS, pengukuran suhu ganda, dan banyak lagi. Dengan bantuan fitur pencatatan data, pengguna dapat menyimpan hingga 20.000 set data pengukuran dan menampilkannya pada grafik tren untuk pemantauan jangka panjang.
Related Products
UT181A adalah multimeter digital dengan perekaman tren, true RMS, filter low pass, konduktansi nS, pengukuran suhu ganda, dan banyak lagi. Dengan bantuan fitur pencatatan data, pengguna dapat menyimpan hingga 20.000 set data pengukuran dan menampilkannya pada grafik tren untuk pemantauan jangka panjang.
FITUR UNI-T UT181A
- Penangkapan tren
- Pencatatan data: 20000
- Perbandingan data
- LCD TFT warna 64k 3,5 inci
- Pengukuran suhu ganda
- Filter low pass
- Baterai Li-ion 2000mAh
- Waktu dan tanggal riil
- Peak hold
- Bluetooth/APP
- Kabel antarmuka USB/CD perangkat lunak PC
- IP65
SPESIFIKASI UNI-T UT181A
| Specifications | Range | UT181A |
| DC voltage (V) | 1000V | ±(0.025%+5) |
| AC voltage (V) | 1000V | ±(0.3%+30) |
| DC current (A) | 10A | ±(0.08%+10) |
| AC current (A) | 10A | ±(0.6%+20) |
| Resistance (Ω) | 60MΩ | ±(0.05%+2) |
| Admittance (nS) | 60nS | ±(2%+10) |
| Capacitance (F) | 60mF | ±(2%+5) |
| Frequency (Hz) | 10Hz~60MHz | ±(0.01%+5) |
| Temperature (°C) | -40°C~1000°C | ±(1%+30) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+50) |
| Features | ||
| Display count | 60000 | |
| Auto/Manual range | √ | |
| Bandwidth (Hz) | 100kHz | √ |
| AC+DC/Continuity buzzer | √ | |
| Low pass filter | 1kHz | √ |
| dBV/dBm | √ | |
| Diode | Around 3V | √ |
| Duty cycle | 10%~90% | √ |
| Dual temperature measurement | T1, T2, T1-T2, T2-T1 | √ |
| Data hold/Peak hold | √ | |
| Relative mode | √ | |
| Data logging | 20000 | √ |
| Trend capture | √ | |
| MAX/MIN/AVG | √ | |
| Data time display/Data comparison | √ | |
| Backlight adjustment | √ | |
| Analog bar graph/USB interface | √ | |
| Mis-plug alarm | √ | |
| Battery indication/Auto power off | √ | |
| Rechargeable battery | √ | |
| Input protection | √ | |
| Input impedance for DCV | ≥10MΩ | √ |
| General Characteristics | ||
| Power | Li-ion battery: 7.4V 2000mAh | |
| Display | 3.5-inch 64K color TFT LCD (320 x 240) | |
| Product color | Red and grey | |
| Product net weight | 638.6g | |
| Product size | 225mm x 103mm x 59mm | |
| Standard accessories | Battery, test leads, temperature adaptor socket, point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable |
|
| Standard individual packing | Gift box, carrying bag, English manual | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 480mm x 385 mm x 505mm | |
| Standard carton gross weight | 25.3kg | |
| Optional accessory | Bluetooth adaptor (UT-D07) | |
