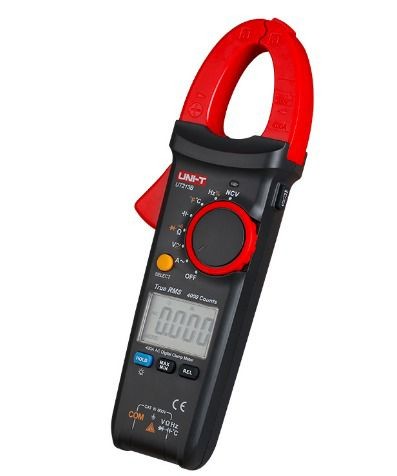

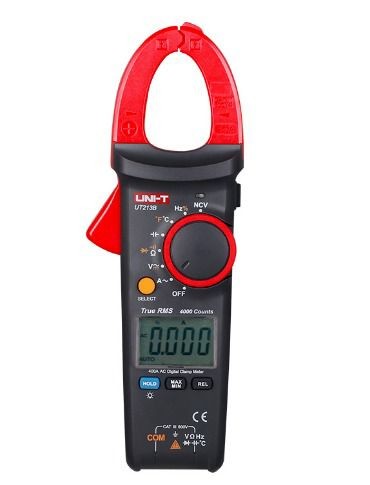

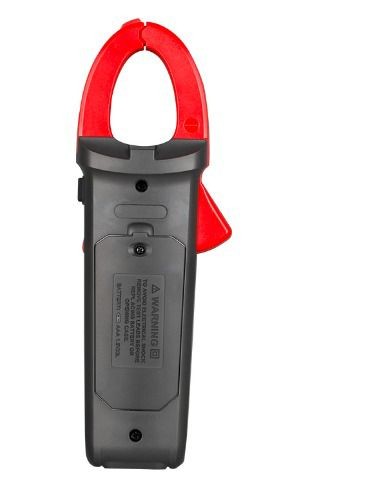

UNI-T UT213B Digital Clamp Meters
Rp 2.550.000 *Inc. PPN
Seri UT213 adalah meteran penjepit digital 400A dengan standar keamanan CAT III 600V. Meteran ini dirancang untuk teknisi listrik dan HVAC/R. Senter internal juga menjadikan meteran ini alat yang berguna saat bekerja di lingkungan gelap.
Related Products
Seri UT213 adalah meteran penjepit digital 400A dengan standar keamanan CAT III 600V. Meteran ini dirancang untuk teknisi listrik dan HVAC/R. Senter internal juga menjadikan meteran ini alat yang berguna saat bekerja di lingkungan gelap.
FITUR UNI-T UT213B
- Jangkauan otomatis
- Mode relatif
- Buzzer NCV/kontinuitas
- Penahan data/lampu latar LCD
- Senter
- Indikasi baterai lemah: ≤3,6V
- Proteksi masukan
- Daya mati otomatis
SPESIFIKASI UNI-T UT213B
| Specifications | Range | UT213A | UT213B | UT213C |
| AC current (A) | 400A | ±(1.8%+9) | ±(1.8%+9) | ±(2.5%+5) |
| DC current (A) | 400A | ±(2%+3) | ||
| AC voltage (V) | 600V | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+3) |
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 100μF | ±(4%+5) | ||
| 40mF | ±(4%+5) | ±(4%+5) | ||
| Frequency | 10Hz~1MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) |
| Temperature | -40℃~1000℃ | ±(1%+3) | ±(1%+3) | |
| -40℉~1832℉ | ±(1%+6) | ±(1%+6) | ||
| Features | ||||
| Display count | 4000 | 4000 | 4000 | |
| Auto range | √ | √ | √ | |
| Jaw opening | 30mm | 30mm | 30mm | |
| True RMS | √ | √ | ||
| Diode | Around 1.5V | Around 3.0V | Around 3.0V | |
| NCV | √ | √ | √ | |
| Data hold | √ | √ | √ | |
| Relative mode | √ | √ | √ | |
| MAX/MIN | √ | √ | ||
| LCD backlight | √ | √ | √ | |
| Flashlight | √ | √ | √ | |
| Auto power off | √ | √ | √ | |
| Continuity buzzer | √ | √ | √ | |
| Low battery indication | √ | √ | √ | |
| Input protection | √ | √ | √ | |
| Input impedance for DCV | √ | √ | √ | |
| General Characteristics | ||||
| Power | 1.5V battery (R03) x 3 | |||
| Display | 38mm x 24mm | |||
| Product net weight | Red and grey | |||
| Product color | UT213A/B: 280g; UT213C: 231.7g | |||
| Product size | 220mm x 75mm x 40mm | |||
| Standard accessories | Batteries, test leads (UT213B/UT213C), point contact temperature probe (UT213B/UT213C) | |||
| Standard individual packing | Gift box, carrying bag, English manual | |||
| Standard quantity per carton | 40pcs | |||
| Standard carton measurement | 485mm x 345mm x 385mm | |||
| Standard carton gross weight | UT213A: 18.2kg; UT213B: 19.6kg; UT213C: 19.4kg | |||
