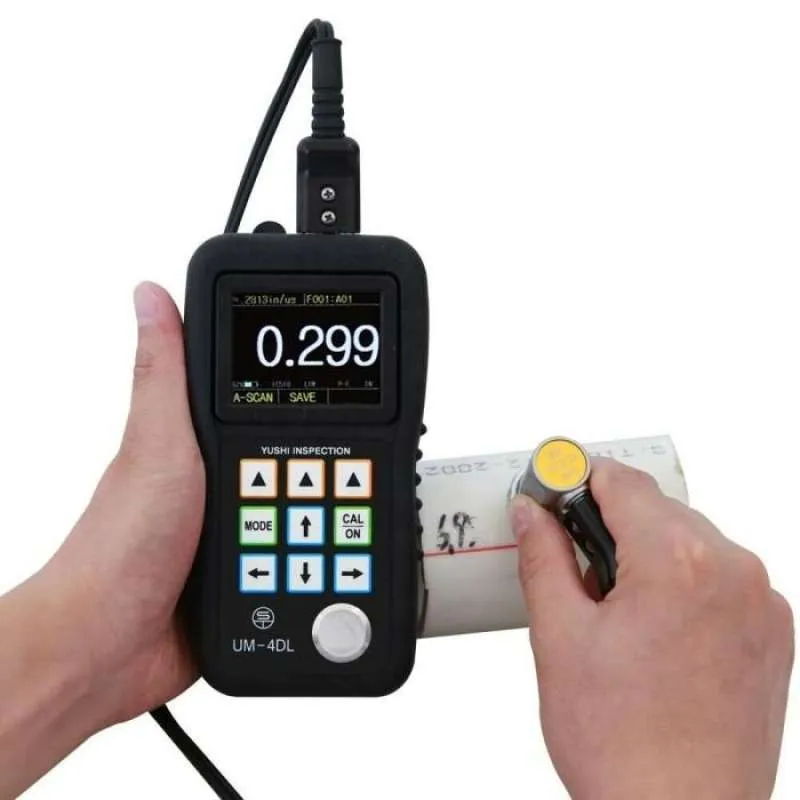

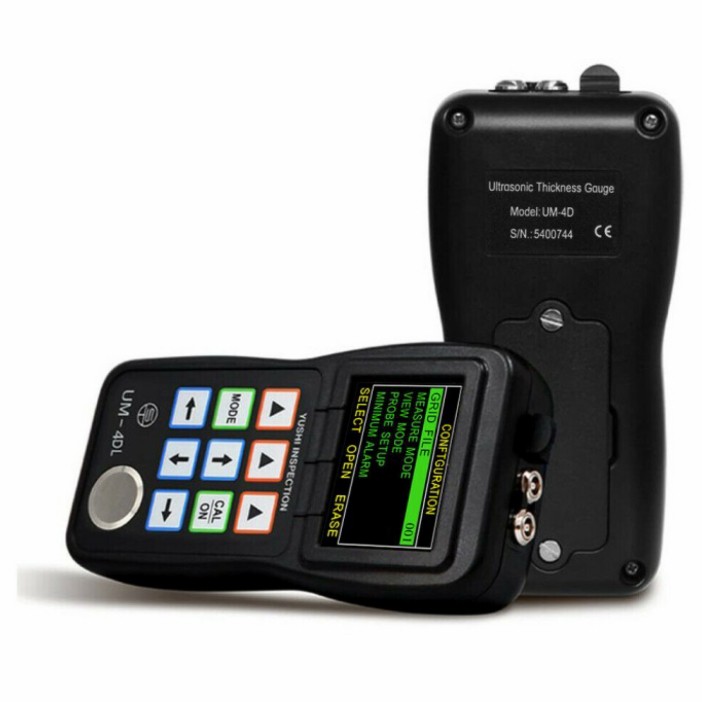

YUSHI Um-4DL Thickness gauge portable

Innovative A-scan snapshot function, Marking the entry of economical thickness gauges into the all-digital era

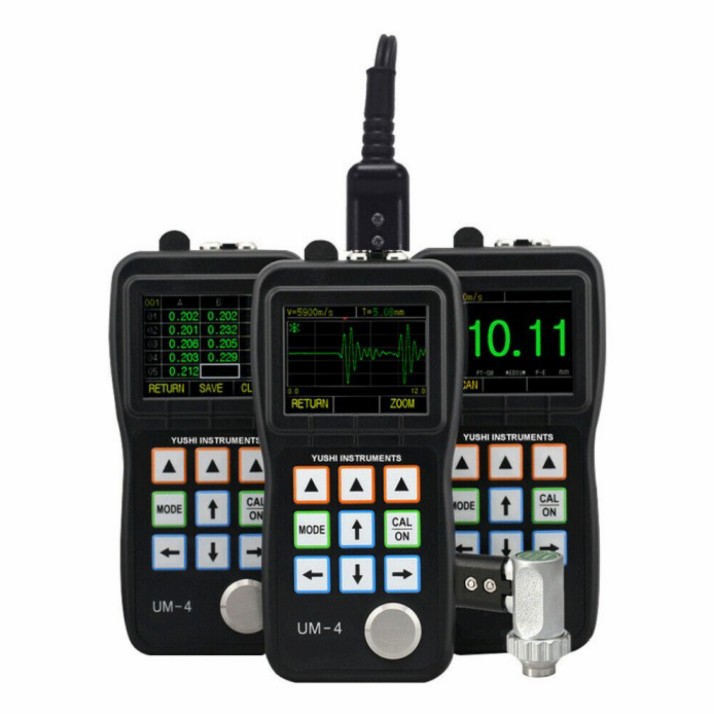

UM-4 Series provide the function of A-scan waveform display firstly in the same class products . Ultrasound is no longer an invisible and intangible abstract concept . The user can see the ultrasonic signal waveform directly on the screen to verify the correct of the thickness reading , analyze the cause of the problem, and help the user find a solution to the problem.

Larger memory, more convenient storage function

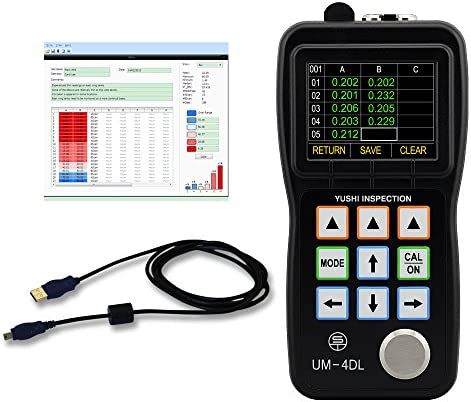

100,000 thickness values can be stored, which is 20 to 200 times in the same class products ;Use the grid storage files first in the domestic, 15 thickness values can be displayed on the screen, and its position in the grid can be displayed at the same time for users to browse the stored thickness data conveniently.USB 2.0 Full Speed interface ;

Powerful DataView data statistics and management software.

Difference /Reduction rate

Difference mode displays the difference between the measured value and the preset value ; Reduction rate is to calculate and display the percentage of thickness reduced after the material is thinned; Typical application is to measure metal materials that have become thinner due to bending.

Alarm mode and Max./Min. Capture

The reading flashes and color changes when in alarm status ;

The measured value, max.& min thickness value can be displayed on the same screen.
