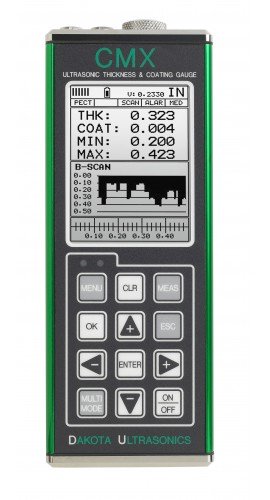

Dakota CMX Ultrasonic Thickness Gauge
Rp 60.500.000 *Inc. PPN
Dakota CMX v2 baru mengukur lapisan dan ketebalan dinding dengan cepat dan akurat—hanya dari satu sisi. Selain itu, saat dialihkan ke mode Pulse-Echo, CMX secara otomatis mengukur dan menghilangkan lapisan dari pengukuran ketebalan dinding, memungkinkan pengguna menemukan korosi dan lubang terbaik—tanpa melepas lapisan.
Related Products
Dakota CMX v2 baru mengukur lapisan dan ketebalan dinding dengan cepat dan akurat—hanya dari satu sisi. Selain itu, saat dialihkan ke mode Pulse-Echo, CMX secara otomatis mengukur dan menghilangkan lapisan dari pengukuran ketebalan dinding, memungkinkan pengguna menemukan korosi dan lubang terbaik—tanpa melepas lapisan.
LCD grafis berukuran besar memiliki lampu latar dan menampilkan font, grafik, dan kode tampilan yang mudah dibaca yang menunjukkan semua pengaturan penting termasuk Velocity, Mode Operasi, Alarm, Mode Pindai, dan lainnya. Lampu latar dapat diatur ke ON (selalu aktif), OFF (selalu mati) atau AUTO (menyala secara otomatis saat mengukur).
Lima mode operasi yang dipilih pengguna disertakan
Pelapisan Aktif: Mengukur ketebalan dinding menggunakan Pulse-Echo. Ini secara terpisah menampilkan ketebalan dinding & lapisan.
Coating Off: Mengukur ketebalan dinding menggunakan Pulse-Echo. Ini hanya menampilkan ketebalan dinding.
Kompensasi Suhu: Mengukur ketebalan dinding menggunakan Pulse-Echo dan secara otomatis menyesuaikan kalibrasi untuk mengkompensasi perubahan suhu material.
Thru-Coat: Mengukur ketebalan dinding hanya menggunakan Echo-Echo. (pelapis TIDAK termasuk)
Mode Lapisan Saja (CT): (Ketebalan Lapisan) Berukuran mulai dari 0,0005 hingga 0,100 inci (0,013 hingga 2,540 mm). Kisaran akan sedikit berbeda tergantung pada lapisan.
New Features in Version 2.0
- High speed scan 200Hz
- TDG (Time Dependent Gain)
- Improved linearity tables (in all measurement modes)
- 110dB gain range
- Setups can be backed up or restored using USB connection
- Screen update rate (25Hz)
- PRF (pulse repetition frequency 250Hz)
- Line power available using USB-C to PC or standard power adapter
Features
- Hardware AGC gain control for multiple echo and thru-paint measurement.
- Multiple calibration options: One Point, Two Point, or selection from a Material List.
- 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
- CE Certified
- 2 year limited warranty
- CMX comes complete with our Windows® PC software for transferring setup / configuration data to and from a PC.
- Visual and audible alarm with hi and lo limit settings for specific application tolerances.
- Includes NIST-Traceableb calibration certificate
Measuring Limits
| Minimum Radius for Convex Surfaces | 0.350″ (8.89 mm) | |
| Minimum Radius for Concave Surfaces | 3″ (76.2 mm) | |
| Minimum Headroom | 1″ (25.0 mm) | |
| Minimum Sample Diameter | 0.150″ (3.8 mm) | |
| Minimum Substrate Thickness – F | NA | |
| Minimum Substrate Thickness – NFe | NA |
Complete Kit
Specifications
| Range in Steel: | Pulse-Echo Mode: Pit and Flaw detection measures from 0.025 – 9.999inches (0.63 to 254 millimeters)
Echo-Echo Mode: Thru Paint & coatings measures from 0.100 – 4.000 inches (2.54 to 102 mm). Range will vary depending on the thick |
| Range in Coating Only Mode | 0.0005″ – 0.1000″ / Resolution: 0.0001″ (0.013 – 2.540 mm / Resolution: 0.001 mm) |
| Max Coating | 0.100″ (2.54mm) |
| Resolution: | .001 inches (0.01mm) |
| Velocity Range: | .0492 to .3936 in./ms 1250 to 9999 meters/sec |
| Units: | Inch or mm |
| Measurement Modes: | – Pulse-Echo (corrosion mode) – Pulse-Echo Coating (Corrosion w/o coating) – Echo-Echo (thru-paint) – Temp Comp (auto adjust for material temp) – Coating Only (Ultrasonic Coating Gauge) |
| Transducer Types: | Dual Element (1 to 10 MHz). |
| Output | RS-232 for upload/download of setups |
| Memory capacity: | TI-CMX: None TI-CMXDL: over 200,000 measurements |
| Power Source: | Three 1.5V alkaline or 1.2V NiCad AA cells |
| Battery Life: | Typically operates for 150 hours on alkaline and 100 hours on NiCad |
| Auto Power off: | After 5 minutes of non-use |
| Display: | 1/8 in. VGA grayscale display 62 x 45.7mm |
| Keyboard: | Membrane switch with twelve tactile keys |
| Case: | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed). |
| Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C) Material: -0 to 200° F (-20 to 100° C) Special high temperature model TI-CMX-H is available for 300°F/150°C and optional probes are offered for higher surface temperatures |
| Weight, net: | 383 grams |
| Dimensions: | 63.5 W x 165 H x 31.5 D mm |
| Warranty: | 2 year limited |
| Certification: | CE Approved, Factory calibration traceable to national standards |
