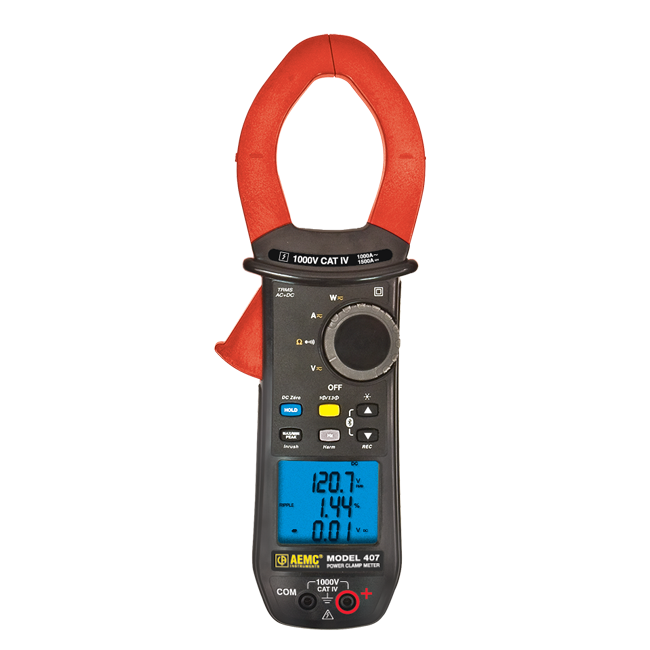

AEMC 407 (2139.51) DC Power Clamp-On Meter

TRMS Power Clamp-on Meter Model 407 provides a new standard for safety and measurement capability not available in any other clamp meter sold today. Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments. It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 407 offers several unequaled functions including:
AC, DC and AC+DC volts, amps and power, True InRush®, Power measurements, Harmonic analysis, Data logging and more.

Features :

1000V CAT IV Rated
UL 94 flame retardant self-extinguishing
IP54 Rated
10,000-count blue electroluminescent backlit display
Measures up to 1000VAC (1400V peak), 1000VDC and AC+DC with resolution to 10mV
Measures up to 1000AAC and 2000ADC
Measures single- and three-phase power (real, reactive and apparent) up to 3MW with resolution to 1W
Measures frequency to 20kHz with 0.1Hz resolution
Auto selects AC or DC measurement voltage
True InRush®?current measurement with 1mS capture
Records up to 1000 measurements
Wireless Bluetooth communications
Jaw opening up to 1.89″
Leads are constructed with a flexible silicone material

What’s In The Box :

(1) AEMC 407 digital clamp-meter
(1) Test lead set
(1) Test probe set
(1) Alligator clip set
(1) Data analysis software
(1) Bluetooth wireless adapter
(4) 1.5V AA batteries
(1) Hard carrying case
(1) Instructions
