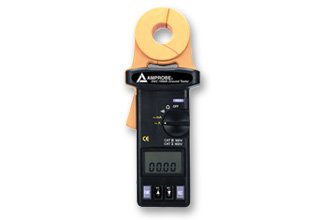

AMPROBE DGC1000A Ground Resistance Tester
Rp 49.270.000 *Inc. PPN
- Accurate ground resistance measurement from 0.025 to 1500 Ohms
- TRMS current measurement including leakage current
- Accurate readings regardless of power quality in less than 10 seconds
- Continuity beep if the resistance is lower than 40.00 Ohms
- Simple and easy to use, no test leads or auxiliary electrodes necessary
Related Products
AMPROBE DGC1000A Ground Resistance Tester user-friendly and accurate. Think safety and Amprobe’s DGC-1000A ground resistance tester second. Use the on-board memory and data logging features to make your work more efficient.
Features :
Accurate ground resistance measurement from 0.025 to 1500 Ohms
TRMS current measurement including leakage current
Accurate readings regardless of power quality in less than 10 seconds
Continuity beep if the resistance is lower than 40.00 Ohms
Simple and easy to use, no test leads or auxiliary electrodes necessary
Data logging capability – 116 records
Individual data point recording
User selectable High & Low ohm audible alarms
Auto power off (can be disabled)
Low battery indicator
Large LCD display
Specifications :
Ground Resistance: 0.025 – 0.250 Ohms (± 1.5% ± 0.05 Ohms, resolution 0.002 Ohms)
Ground Resistance: 0.250 – 1.000 Ohms (± 1.5% ± 0.05 Ohms, resolution 0.02 Ohms)
Ground Resistance: 1.001 – 9.999 Ohms (± 1.5% ± 0.1 Ohms, resolution 0.02 Ohms)
Ground Resistance: 10.00 – 50.00 Ohms (± 2.0% ± 0.3 Ohms, resolution 0.04 Ohms)
Ground Resistance: 10.01 – 99.99 Ohms (± 2.0% ± 0.5 Ohms, resolution 0.04 Ohms)
Ground Resistance: 100.0 – 200.0 Ohms (± 3.0% ± 1.0 Ohms, resolution 0.4 Ohms)
Ground Resistance: 200.1 – 400.0 Ohms (± 5.0% ± 5 Ohms, resolution 2 Ohms)
Ground Resistance: 400.0 – 600.0 Ohms (± 10% ± 10 Ohms, resolution 5 Ohms)
Ground Resistance: 600.1 – 1500 Ohms (± 20%, resolution 20 Ohms)
TRMS Ground / Leakage Current: 0.200 – 1.000 mA (± 2.0% ± 0.05 mA)
TRMS Ground / Leakage Current: 1.00 – 10.00 mA (± 2.0% ± 0.03 mA)
TRMS Ground / Leakage Current: 10.0 – 100.0 mA (± 2.0% ± 0.3 mA)
TRMS Ground / Leakage Current: 100 – 1000 mA (± 2.0% ± 3 mA)
TRMS Ground / Leakage Current 0.200 – 4.000 A (± 2.0% ± 0.03 A)
TRMS Ground / Leakage Current: 4.00 – 30.00 A (± 3.0% ± 0.03 A)
DGC-1000A
Accurate ground resistance measurement from 0.025 to 1500 Ohms
TRMS current measurement including leakage current
Accurate readings regardless of power quality in less than 10 seconds
Continuity beep if the resistance is lower than 40.00 Ohms
Belanja online Clamp Meter hanya di Kucari dengan kualitas terbaik, harga murah bersaing, bisa COD, Gratis pengiriman wilayah Jakarta dan sekitarnya. Beli sekarang hanya di toko online terpercaya.
Pengiriman ke seluruh Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, NTT, NTB, Papua dan Bali Denpasar.
Specification: AMPROBE DGC1000A Ground Resistance Tester
| Weight | 1 kg |
|---|
