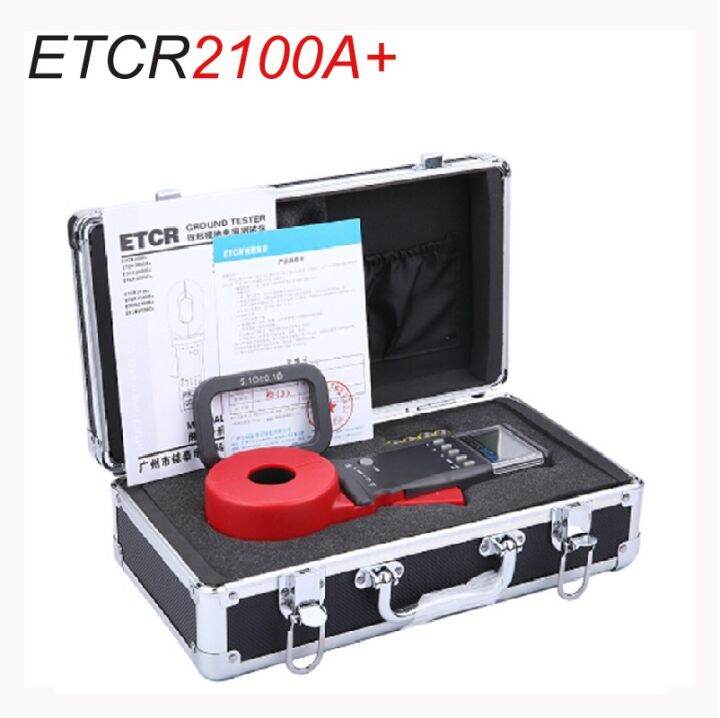

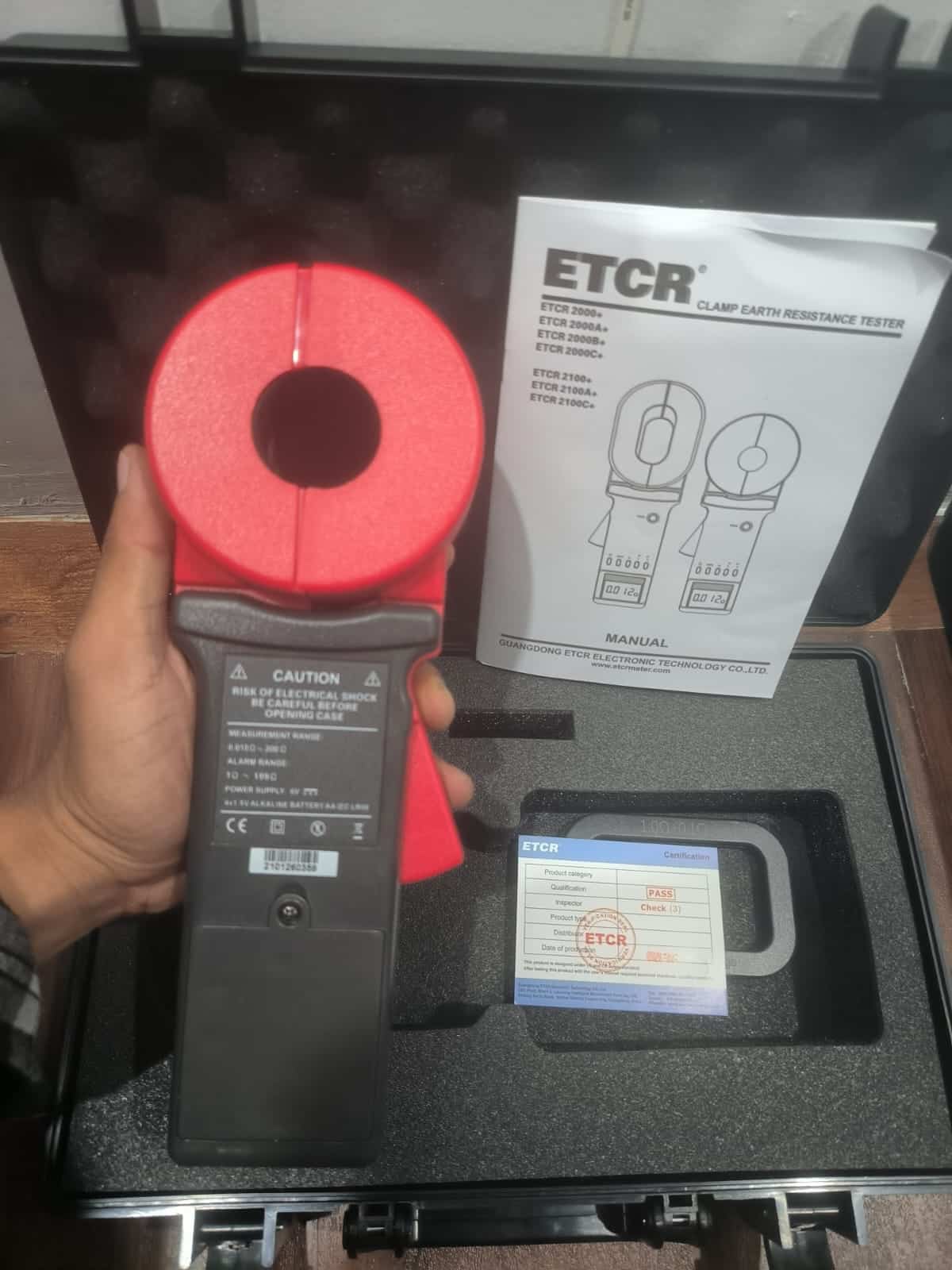

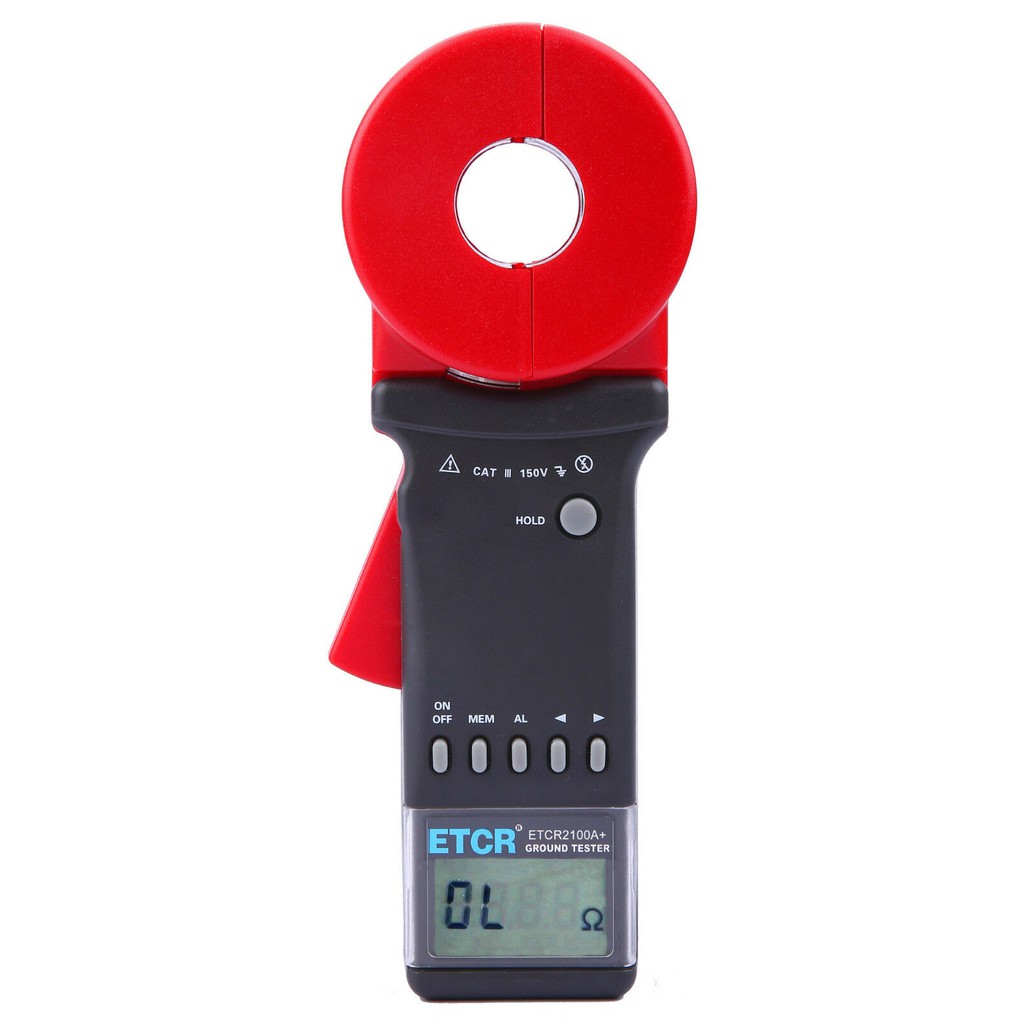

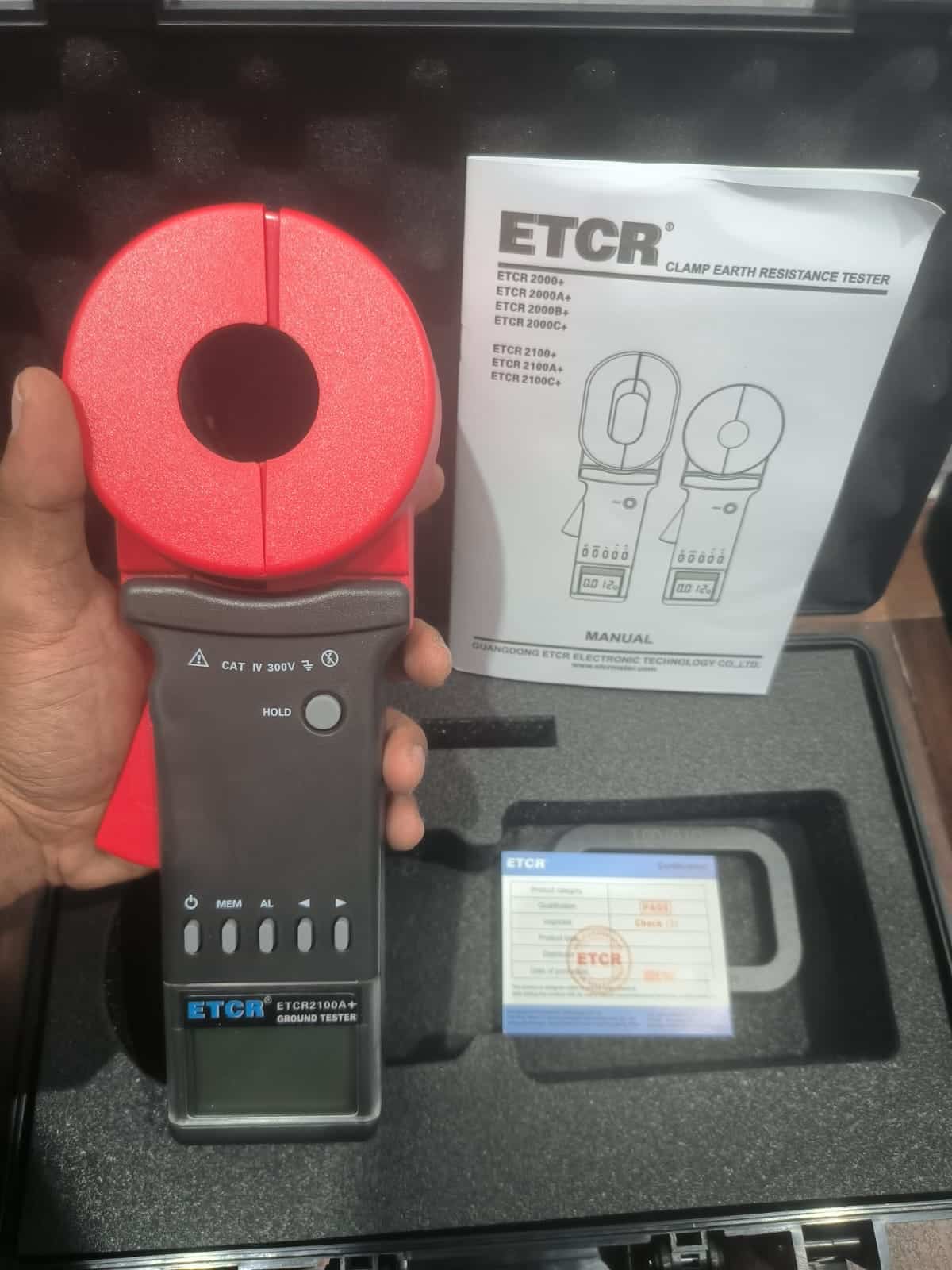

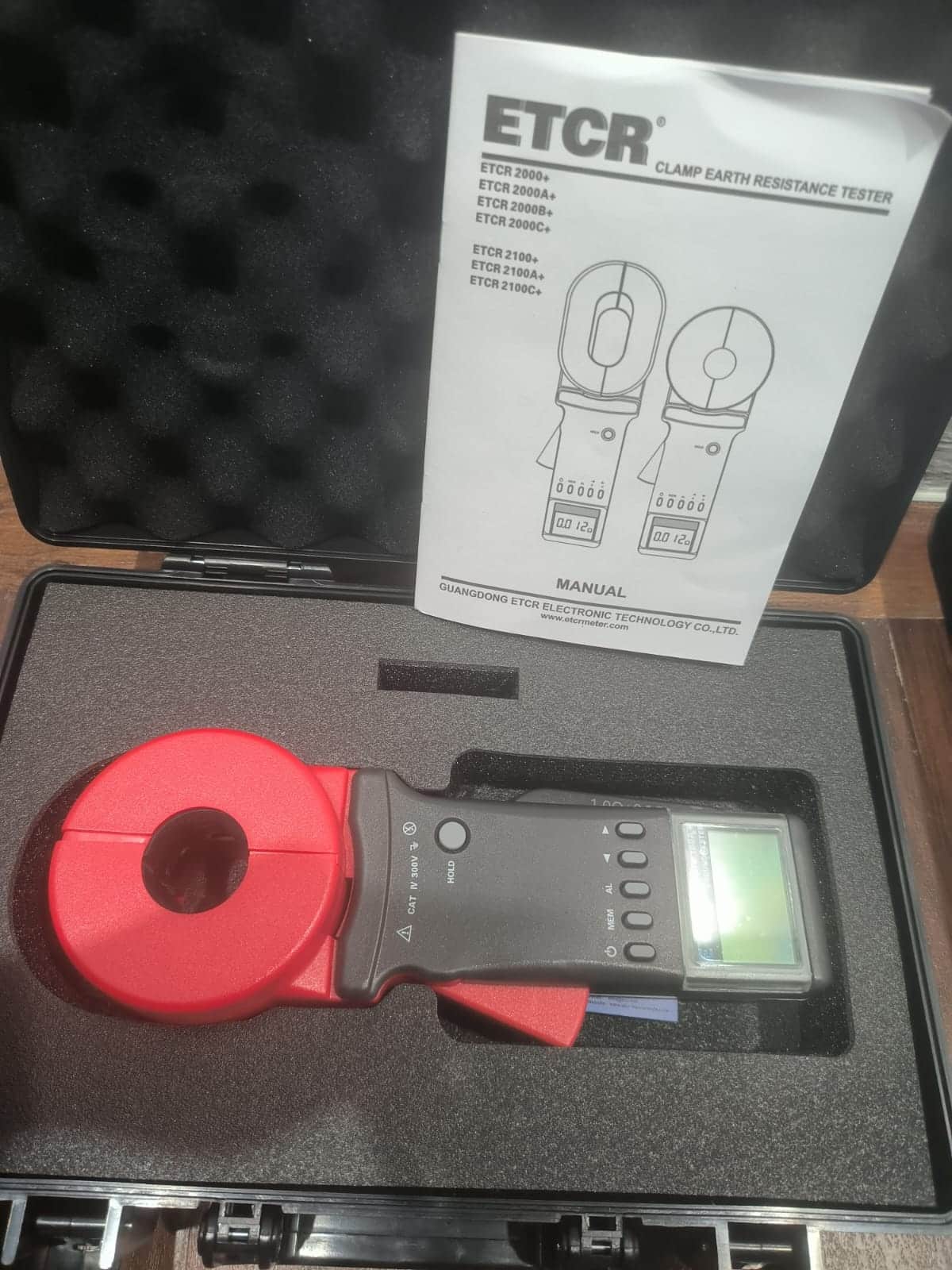

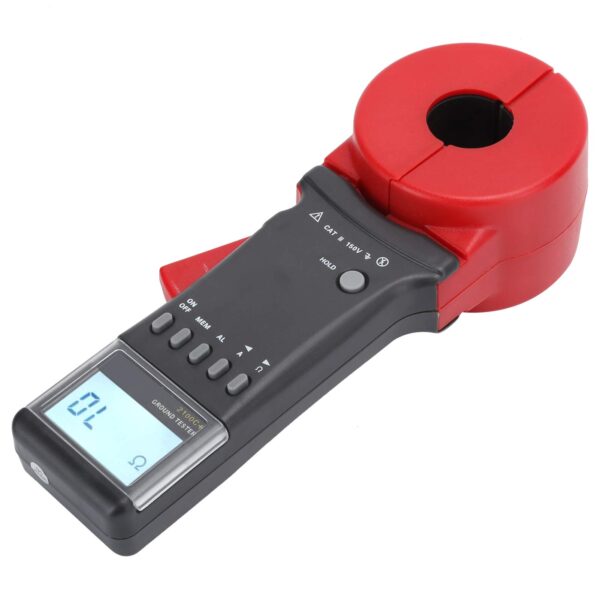

Clamp Meter ETCR2100A+ Resistance Tester
Rp 4.750.000 *Inc. PPN
ETCR2100A+ Clamp Earth Resistance Tester, juga dikenal sebagai clamp type earth resistance tester, clamp earth resistance tester, loop resistance tester, single clamp earth resistance tester, yang digunakan untuk pengukuran resistansi bumi, resistansi loop dan penilaian kesalahan pentanahan. Dalam pengukuran sistem pentanahan loop, tidak perlu melepaskan kabel pentanahan, dan tidak meminta tiang pentanahan tambahan, yang aman, cepat dan nyaman digunakan.
Related Products
ETCR2100A+ Clamp Earth Resistance Tester, juga dikenal sebagai clamp type earth resistance tester, clamp earth resistance tester, loop resistance tester, single clamp earth resistance tester, yang digunakan untuk pengukuran resistansi bumi, resistansi loop dan penilaian kesalahan pentanahan. Dalam pengukuran sistem pentanahan loop, tidak perlu melepaskan kabel pentanahan, dan tidak meminta tiang pentanahan tambahan, yang aman, cepat dan nyaman digunakan.
Clamp earth resistance tester banyak digunakan dalam pengukuran resistansi bumi dan loop tenaga listrik, telekomunikasi, meteorologi, ladang minyak, konstruksi dan peralatan listrik industri. Tester dapat mengukur kesalahan tanah yang tidak dapat diukur dengan metode tradisional, dan dapat diterapkan ke lokasi yang tidak dapat diukur dengan metode tradisional, karena clamp earth resistance tester mengukur nilai komprehensif resistansi badan pentanahan dan resistansi kabel pentanahan.
FITUR ETCR2100A+
- Pengukuran resistansi bumi, resistansi loop
- Jangkauan Pengukuran Resistansi: 0,010Ω ~ 200Ω (ETCR2100+ hingga 1.200Ω)
- Penyimpanan Data: 99
- Pengaturan Ambang Batas Alarm: 1 – 199Ω
- Fungsi Alarm: alarm yang dapat didengar & dilihat
SPESIFIKASI ETCR2100A+
| Measurement | Range | Resolution | Accuracy |
| Resistance |
0.010Ω-0.099Ω | 0.001Ω | ±(1%rdg+0.01Ω) |
| 0.10Ω-0.99Ω | 0.01Ω | ±(1%rdg+0.01Ω) | |
| 1.0Ω-49.9Ω | 0.1Ω | ±(1%rdg+0.1Ω) | |
| 50.0Ω-99.5Ω | 0.5Ω | ±(1.5%rdg+0.5Ω) | |
| 100Ω-199Ω | 1Ω | ±(2%rdg+1Ω) |
Technical Parameters
| Function | Description |
| Power Supply | 6VDC 4 PCS of LR6 lkaline batteries |
| Clamp Size | Φ 32mm |
| LCD Size | 4 Digits LCD display, Screen: 47mm×28.5mm |
| Range | 0.010Ω~200Ω |
| Resolution | 0.001Ω |
| Accuracy | ±1%rdg ±0.01Ω |
| Data Storage | 99 sets |
| Auto Power-off | Automatically power off after 5 minutes without any operation |
| Power Consumption | ≤50mA, Continuously working for 30 hours |
| Working Environment | -20oC~55oC, 20%rh~80%rh |
| Store Environment | -20oC~60oC, below 90%rh |
| Alarm Threshold Setting Range | Resistance:1~199Ω |
| Audible and Visible Alarm | “Beep-beep-beep” alarm sound, alarm symbol flashing, press AL key to turn on/off and setting |
| Interference Signal Recognition | “Beep-beep-beep” indicator, NOISE symbol blinking |
| Protection Level | Double insulation |
| Structural Feature | Clamp CT |
| Shift | Automatic shift |
| External Magnetic Field | <40A/m |
| External Electrical Field | <1V/m |
| Single Measure Time | 0.5 second |
| Resistance Measure Frequency | >1KHz |
| Measured Current Frequency | 50/60Hz Automatic |
| Low Battery Voltage indication | When the battery voltage is lower than 5.3V, the low battery voltage symbol is displayed |
| Storage Full Indication | Storage data full of 99 sets,flashed display “MEM” symbol |
| Over Range Indication | Over range indication “OLΩ”, “L0.01” or “OL A” |
| Tester Weight | 1030g (With batteries) |
| Clamp Dimension | L×W×T:260mm×90mm×66mm |
