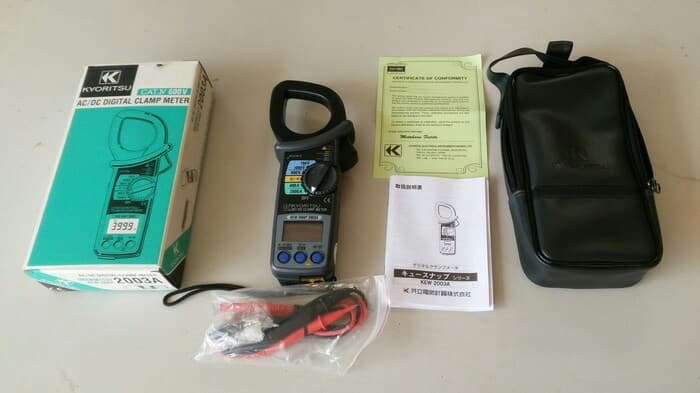

Kyoritsu 2003A Clamp Meter
Rp 3.640.000 *Inc. PPN
• Equipped to measure both AC and DC current with transformer jaws of large diameter.
• Can measure AC and DC currents up to 2000A.
• Output terminal for connection to recorders.
Related Products
Kyoritsu 2003A Clamp Meter
• Equipped to measure both AC and DC current with transformer jaws of large diameter.
• Can measure AC and DC currents up to 2000A.
• Output terminal for connection to recorders.
| AC A | 400A/2000A (0 – 1000A) ±1.5%rdg±2dgt [50/60Hz] ±3%rdg±4dgt [40 – 500Hz] ±5%rdg±4dgt [500Hz – 1kHz] 2000A (1001 – 2000A) ±3%rdg±2dgt [50/60Hz] |
|---|---|
| DC A | 400/2000A ±1.5%rdg±2dgt |
| AC V | 400/750V ±1.5%rdg±2dgt [50/60Hz] ±1.5%rdg±4dgt [40Hz – 1kHz] |
| DC V | 400/1000V ±1%rdg±2dgt |
| Ω | 400/4000Ω ±1.5%rdg±2dgt |
| Continuity buzzer | buzzer sounds below 50±35Ω |
| Conductor size | Ø55mm max. |
| Frequency response | 40Hz – 1kHz |
| Output | Recorder : DC400mV against AC/DC400A DC200mV against AC/DC2000A |
| Safety Standard | IEC 61010-1 CAT IV 600V , CAT III 1000V IEC 61010-031 IEC 61010-2-032 |
| Power source | R6 (AA) (1.5V) × 2 |
| Dimensions | 250(L) × 105(W) × 49(D)mm |
| Weight | 530g approx. |
| Included Accessories | 7107A (Test leads) 9094 (Carrying Case) R6 (AA) × 2 Instruction Manual |
| Optional Accessories | 7256 (Output cord) |
Specification: Kyoritsu 2003A Clamp Meter
| Weight | 1 kg |
|---|
