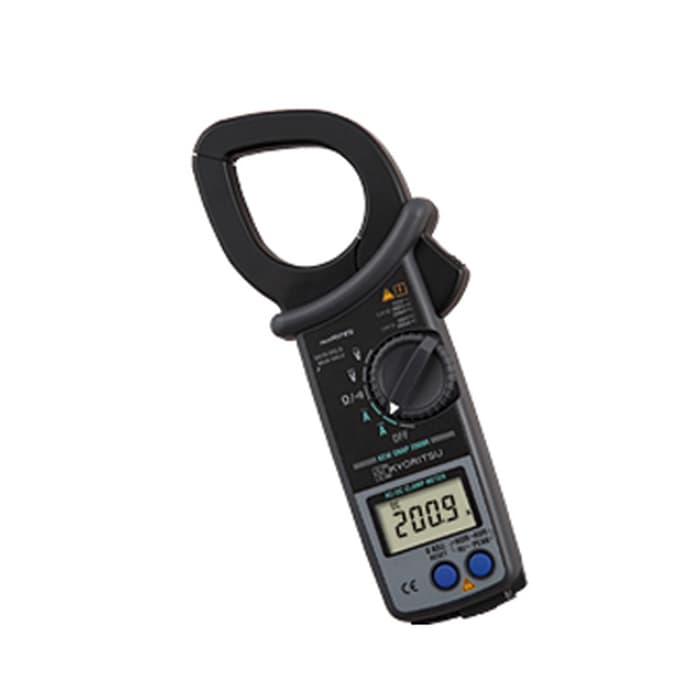

KYORITSU 2009R True-RMS AC/DC Clamp Meter

KYORITSU 2009R True-RMS AC/DC Clamp Meter

Description :

CAT.IV Clamp Meter can measure the Voltage and Current in both very low and high power circuits.
•    Accurate True-RMS reading of AC current or voltage with distorted waveform.
•    Can measure AC and DC currents up to 2000A.

Specification :

AC A
400.0/2000A
±1.3%rdg±3dgt    (0~400.0A, 150~1700A)    (45~66Hz)
±2.0%rdg±5dgt    (0~400.0A, 150~1700A)    (20Hz~1kHz)
±2.3%rdg±3dgt    (1701~2000A)    (45~66Hz)
DC A    400.0/2000A ±1.3%rdg±2dgt
AC V
40.00/400.0/750V
±1.0%rdg±3dgt    (45~66Hz)
±1.5%rdg±5dgt    (20Hz~1kHz)
DC V    40.00/400.0/1000V ±1.0%rdg±2dgt
Ω    400.0/4000Ω |±1.5%rdg±2dgt
(Electronic protection (no fuse) up to 600V)
Continuity buzzer    Buzzer sounds below 20Ω
Hz    10.0 ~ 4000Hz Current: more than 40A Voltage: more than 10V)
Output
Recorder :    DC400mV against AC/DC400.0A
DC200mV against AC/DC2000A
Withstand voltage    6880V AC for 5 seconds
Conductor size    Ø55mm max.
Applicable standards    IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1
Power Source    R6P (1.5V) × 2
Dimensions    250(L) × 105(W) × 49(D)mm
Weight    Approx. 540g (including batteries)
Accessories    7107A (Test leads), 8201 (Output plug), 9094 (Carrying case)
R6P (AA) (1.5V) × 2, Instruction Manual
Optional    8008 (Multi-Tran) (AC only), 7256 (Output cord)
