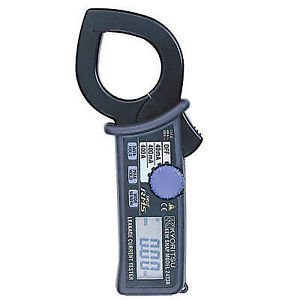

KYORITSU 2433R RMS Leakage Clamp Meter

KYORITSU 2433R RMS Leakage Clamp Meter

Description :

AC A
( 50/ 60Hz) 40/ 400mA/ 400A
| ± 1% rdg± 5dgt ( 40/ 400mA)
| ± 1% rdg± 5dgt ( 0~ 300A)
| ± 2% rdg ( 300.1~ 399.9A)
AC A
( WIDE) 40/ 400mA/ 400A
| ± 1% rdg± 5dgt [ 50/ 60Hz] ,
| ± 2.5% rdg± 10dgt [ 20Hz~ 1kHz] ( 40/ 400mA)
| ± 1% rdg± 5dgt [ 50/ 60Hz] ,
| ± 2.5% rdg± 10dgt [ 40Hz~ 1kHz] ( 0~ 300A)
| ± 2% rdg [ 50/ 60Hz] ,
| ± 5% rdg [ 40Hz~ 1kHz] ( 300.1~ 399.9A)
Frequency Response    20Hz~ 1kHz [ 40Hz~ 1kHz: 400A]
Maximum
Circuit Voltage    600V AC/ DC ( between line/ neutral)
300V AC/ DC ( against earth)
Conductor Size    Ø 40mm max.
Safety Standard    IEC 61010-1 CAT.III 300V Pollution Degree 2
IEC 61010-2-032
Effect of External
Stray Magnetic Field    10mA AC approx. in proximity to a 15mm-dia
conductor carrying 100A AC
Withstand Voltage    3700V AC for 1 minute
Response Time    Approx. 2 seconds
Power Source    Two R03 or equivalent ( DC1.5V) batteries
Dimensions    185( L) × 81( W) × 32( D) mm
Weight    270g approx.
Accessories    9052 ( Carrying Case) R03 ( 1.5V) × 2
Instruction Manual
Optional    8004/ 8008 ( Multi-Tran) *
