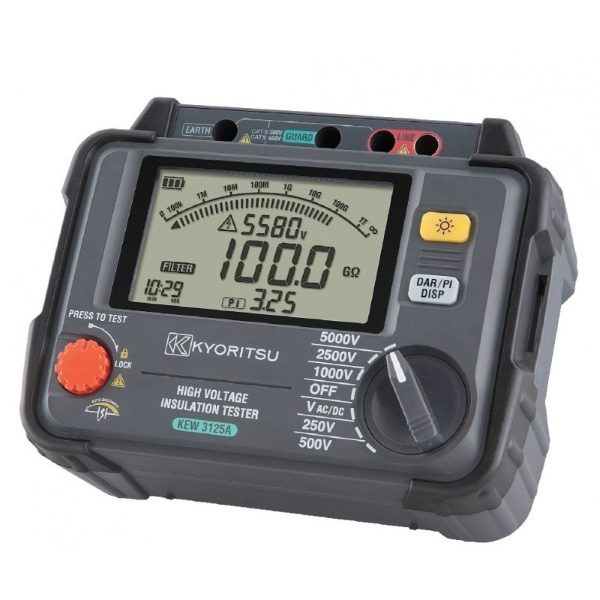

KYORITSU 3125A 5KV Digital Insulation Tester

KYORITSU 3125A 5KV Digital Insulation Tester

Description :

Wide range measurements from 500V to 5000V and up to 1000GÎ © .
Large digital display with Bar Graph indication and back light.
Polarization Index measurement ( PI) .
Timer measurement function.
Indication of Output voltage and Discharge voltage.
Auto-discharge function and Voltage output warning function.
Auto power off and Battery Check.
Safety standard IEC 61010-1 CAT.III 600V

Specifications :

Range : 500V-1000V-2500V-5000V
Voltage Measurement : AC/ DC V ; 30-600V ; 50/ 60Hz
Measuring range : 500V : 0.0 – 99.9M©
Accuracy : 5% rdg± 3dgt
Short Current : 1.3mA approx
Maximum Display : 999 Counts( 1000counts only at 1000G© )
Current Consumtion : About 1000mA( During Measurement)
Withstand Voltage : 5320V AC for 5 seconds
Power Supply : DC12V : R14 x 8
Dimensions : 205L x 52W x 94D mm
Weight : 1.8 Kg approx
Included Accessories:    7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m),
8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case),
LR14 (Alkaline battery size C) × 8, Instruction manual
