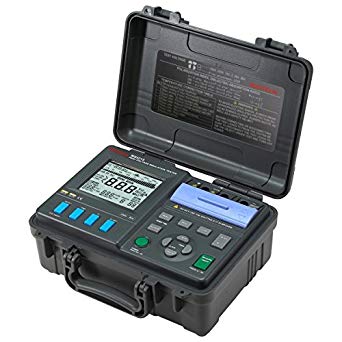

MASTECH MS5215 5KV High Voltage Digital Insulation Tester

MASTECH MS5215 5KV High Voltage Digital Insulation Tester

Description :

Temperature compensation
For obtaining the insulation resistance under a temperature other than current ambient temperature.
Converts the measured value of resistance to the insulation resistance under a reference ,temperature,.and display the result.
Depending on the different properties of test objects, there are 10 modes of compensation.

Features :

♦  Checking the insulation of high-voltage electrical equipment (electric motor, transformer, and cable, etc)
♦  Test Voltage from 250V to 5000V.
♦  Insulation resistance up to 5TΩ
♦  Short Current up to 3mA.
♦  Auto Calculate PI (Polarization Index) and DAR (Dielectric absorption ratio).
♦  Step-Voltage Measurement
♦  Temperature measurement
♦  Temperature compensation for insulation Test
♦  Leakage Current measurement.
♦  Data Storage function and uploading to PC by USB2.0 Interface.
♦  Timer Function
♦  Power Supply: LR6 Battery * 6 / rechargeable battery NI/ Charger: Input Voltage 100V to 240V,
♦  Frequency 50Hz to 60 Hz, output voltage 12V DC 3A
♦  Weight 2.5kg (not including Battery)
♦  Size 284mm(L) * 230mm(W) * 125(H)
♦  Test Voltage Range DC250V to DC5KV
♦  Voltage Set :
Wide adjust: 250V, 500V, 1000V, 2.5kV, 5kV
Fine adjust: 250V to 1kV, step 25V, 1kV to 5kV, step 100V
♦  Accuracy: 5%
♦  Step mode: 500V, 1.0kV, 1.5kV, 2.0kV, 2.5kV
♦  Test Current 1nA to 3mA
