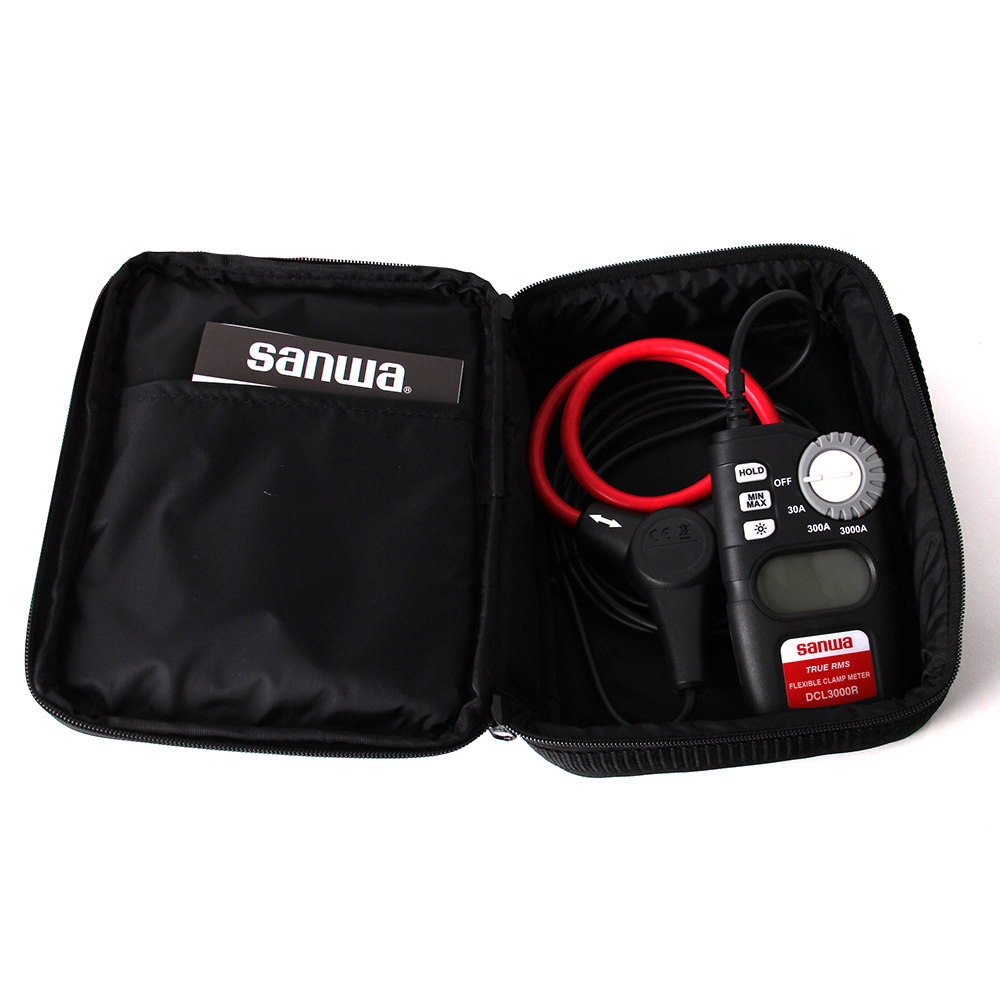

SANWA DCL3000R AC Clamp Meter with Flexible Clamp

SANWA DCL3000R AC Clamp Meter with Flexible Clamp

Description :

This instrument is a True RMS AC Clamp Meter designed in compliance with IEC61010-1 CATIV 600V.
It is capable of measuring TRMS AC current up to 3000A.
Current measurement on low voltages up to 600V AC.
Flexibility facilitating conductor clamping even in narrow spaces.
Backlight, Data hold, Max/Min value hold

Features :

■ Operation method : Double integration
■ AC measuring method : True RMS AC coupling
■ Display : 3150 counts
■ Flexible CT length : Approx. 485 mm
■ Flexible CT diameter : Approx. ø8.5 mm
■ Clamped conductor diameter : Max. approx. ø150 mm
■ Cable length : Between flexible CT and cabinet : Approx. 1.8 m
■ Over range : “OL” displayed on the numeric display
■ Low battery indication : The indicator lights on the display
■ Auto power save : Approx. 15 min. after the last operation
■ Sampling rate : Approx.2 times/sec
■ Range switching : Manual
■ Safety standards : IEC61010-1 CAT. 600 V
■ Power consumption : Approx. 20 mA TYP
■ Continuous operation duration : Approx. 130 hours (Backlight extinguished)
